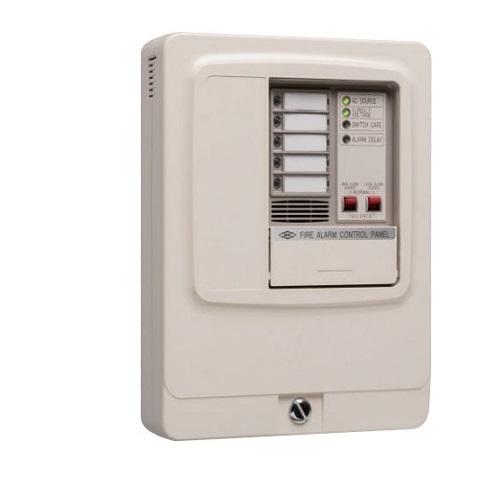

Trung tâm báo cháy 5 kênh NITTAN 2PD1-5L
- The 2PD1-5L is a conventional fire alarm panel with a stylish wall-mount design supplied in 5 zone format. All detector circuits will be indicated with lighting red LEDs in alarm conditions and flushing in open circuit fault conditions. Slide-in paper labels are included for clear zone identification. The alarm panel has an alarm delay function on detector circuits to reduce false alarms, including a delay ON/OFF function.
- Alarm delay function
+ Heat Detector: 20 sec.
+ Smoke Detector: 60 sec.
- Alarm delay ON/OFF switch function
- Supervision of detector lines and fault conditions.
- Energy saving technorogy for its running cost.
- Extra slim design.
- Light body using flame retardant ACS resin.
- High reliablility minimmizes maintenance cost.
- Equipped with surge absorbers.
- Re-sounding system.
- 1 output for zone alarm bells.
- 1 output for signal transfer to external facility.
- Easy wiring by Push-in terminals’ one-touch connection.
Thông số kỹ thuật
| Model | 2PD1-5L |
| AC Power | 220 VAC ±10% 50/60 Hz |
| Standby Battery | 24VDC / 0.225 Ah, Sealed Type Ni-Cd battery |
| Nominal Delay Time | 60 sec. (For smoke detector: 60 sec. For heat detector: 20 sec.) |
| Dimensions | W 240 x H330 x D 70 mm |
| LED Indicators | Zone alarm, AC power, Circuit voltage, Switch operation, Alarm delay |
| Functions | Circuit voltage monitoring, Cable break monitoring |
| External Line Resistance | 50 Ω and less |
| End of Line Device | CRE |
| Panel Alarm Sounder | Piezoelectric buzzer, automatic re-sounding type |
| Fire Alarm Transfer | Contact Capacity Common Fire Alarm : F-F’ (Normally-Open) 1 A 24 VDC Fire Alarm: GA-GB-GC (Form-C) 1 A 24 VDC |
| Output Current for Zone Alarm Bells | 125 mA @ 24 VDC (B-BC) |
| Output Current for Indication Lamps | 25 VAC 300 mA (PL-PL’) |
| Number of Connectable Detectors | Standard type Smoke detector: Max. 20 /zone Heat detector: As required Thermistor type Heat detector: Max. 24 /zone, Total 12 x zones |
| Connectable Manual Alarm Station | 2ME1A 2MH1A |
| Connectable Annunciator Panel | Model PSH x 1 unit |
| Operating Temperature | 0°C to +40°C |
| Primary Materials | Flame retardant resin |
| Body Color | JPMA Color Code A22-90B Semi-gloss (off-white) |
- Bảo hành: 12 tháng.
