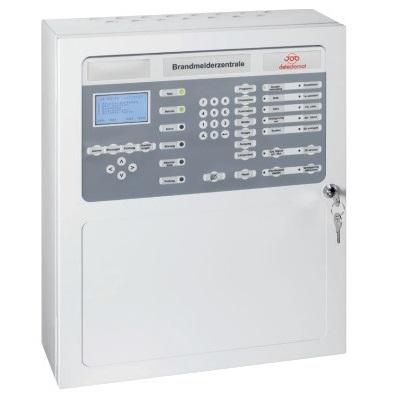

Trung tâm báo cháy địa chỉ 2 Loop DETECTOMAT Detect 3004
- Microprocessor controlled fire control panel for the use with the Loop 3000 fire detection system components. Approved to EN 54-2 A1 2006, EN 54-4 A1 2002, A2 2006 and VdS for the use according to VdE 0833.
- Large LCD, 160 x 80 points.
- RS-232 interface for easy programming via DPT-Software.
- Space for 2 modules to connect 126 Loop 3000 fire detection system components per module.
- Up to 128 programmable detector zones.
- Event log memory of up to 500 messages.
- Easy programming of up to 504 connections.
- In accordance to EN 61000-6-3 class B for emissions, so suitable for the use in sensitive areas.
- Option for 2 conventional interface cards for controlling up to 16 conventional zones.
- Extinguishing interface for controlling extinguishing and gas suppression systems in accordance to EN 12094.
- Integrated interface for the connection of up to 63 additional network components.
- Integrated control of extinguishing systems via the standard extinguishing interface in accordance to VdS.
Thông số ky thuật
| Model | Detect 3004 |
| Supply Voltage | 230 VAC (-15% / +10%) |
| Emergency Supply | 2 x 12V/12 Ah |
| Power Supply | 24 VDC/ 72W/ 3,5A; 1 output 24 VDC/ 800mA for external devices |
| Quiescent Current | 250 mA |
| Input | 3 inputs for collective evetnts |
| Display | LC-display 160 x 80 pixel. Backlit |
| Interfaces | RS-232, Bitbus (RS-485 based), Fire brigade interface |
| Protection class | IP30 |
| Ambient temperature | -5°C to +40°C |
| Humidity | 5% to 95% (not condensing) |
| Dimensions (H x B x T) | 490 mm x 420 mm x 150 mm |
| Weight | 12 kg without batteries |
| Material | Sheet metal |
| Colour | light grey RAL 7035 |
- Bảo hành: 12 tháng.
