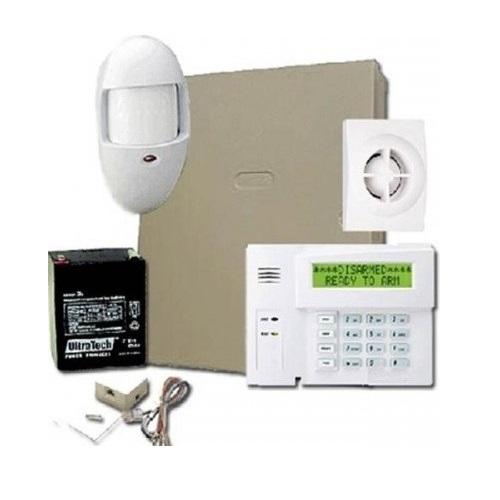

Trung tâm báo động HONEYWELL VISTA-20P
- Trung tâm báo VISTA-20P có thể mở rộng lên đến 40 Zones có dây hoặc không dây.
- Tích hợp đa chức năng hỗ trợ người dùng.
Tính năng
- IP alarm reporting and uploading/downloading capability for Internet and Intranet use via iGSMV4G, 7845i-ENT, GSMV4G or GSMX4G.
- Supports four graphic touchscreen keypads.
- Wireless keys can be programmed without using zones.
- Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
+ 40 hardwire expansion zones
+ 40 wireless expansion zones
- Two low current on-board trigger outputs
- 100 Event Log viewable at system keypads with time/date stamp
- 48 system user codes assignable to either partition
- Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
- Two independent partitions plus a common partition
– Global Arming from any system keypad
– Go to function to view or operate one partition from the other
– Separate partition account numbers
- 16 output devices: Relays (Model 4204 Relay Modules, or 4229 Expansion Module)
- Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
- Supports four-wire and up to 16 two-wire smokes: Works with Sentrol CleanMe™ maintenance signal
- Multiple actions on output devices depending on system state
- Turns lights off when system arms
+ Turns the same light on when system disarms
+ Flashes same lights when system is in alarm
- Built-in phone line cut monitor with programmable delay and annunciation options
+ Display on system keypads
+ Trigger local sounders
+ Trigger system bell
Thông số kỹ thuật
| Model | VISTA-20P |
| System Capacities | |
| Maximum Zone Capacity | 48 |
| Std. Hardwired Zones (with zone doubling) | 8 (15) |
| Maximum ECP Hardwire Expansion Zones | 40 |
| Maximum Wireless Expansion Zones | 40 |
| Wireless Keys (do not use zones) | 16 |
| Partitions | 2 ''true'' |
| User Codes | 48 |
| Event Log | 100 |
| Maximum Number Two-Wire Smokes | 16 |
| Maximum Number of Schedules | 32 |
| False Alarm Prevention Features | |
| Exit Error Logic | ✓ |
| Exit Delay Reset | ✓ |
| Exit Delay Countdown | ✓ |
| Cross Zoning | ✓ |
| Alarm Verification – Fire | ✓ |
| Swinger Shutdown | ✓ |
| Unvacated Auto-Stay | ✓ |
| Alarm Cancel Verification | ✓ |
| System Configuration | |
| Interactive Phone Support | ✓ |
| Real Time Clock | ✓ |
| Temporal Bell | ✓ |
| Bell Supervision | ✓ |
| Telephone Line Monitor | ✓ |
| On-board Triggers | 2 |
| Relays Supported | 16 |
| Additional Features | |
| Cross Partitioning (go to) | ✓ |
| “Night” Arming | ✓ |
| RF Supervision by Transmitter | ✓ |
| Common Lobby Logic | ✓ |
| Configurable Zone Type | ✓ |
| “Battery Saver” | ✓ |
| Keyswitch Arming | ✓ |
| Convenience Features | |
| Single Button Arming | ✓ |
| Quick Exit | ✓ |
| Keypad Macros | ✓ |
| Viewable Event Log at Keypad | ✓ |
| Pager Capability | 4 |
| Auto Arm/Disarm | ✓ |
| Graphic Keypad Support | 4 |
| Internet and GSM Communication Support | ✓ |
| LTE Communication Support | ✓ |
| Note: ✓ Supported Feature | |
- Bảo hành: 12 tháng.
