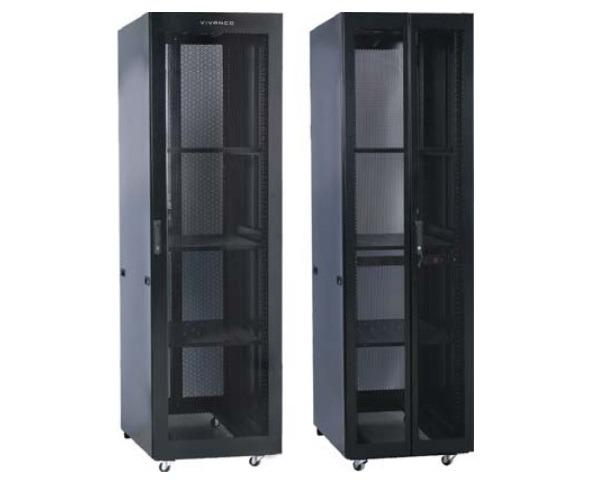

Tủ Rack 19-inch 42U VIVANCO VE6042.56.100

Tủ Rack 19-inch 42U VIVANCO VE6042.56.100

  • MS 000009559
  • VIVANCO
Giá : 14,027,000 vnđ (Đã bao gồm VAT)

Tủ Rack 19-inch 42U VIVANCO VE6042.56.100

Tủ Rack 19-inch 42U VIVANCO VE6042.56.100

- Part number: VE6042.56.100

- Vivanco VE Rapid Cabinets provide a customizable solution for datacenter build-outs, network rooms, or IT closets. The feature-rich, robust design can be shipped flat packed or as a custom-configured solution that is fully assembled with accessories pre-installed. Vivanco VE Rapid Cabinets offer multiple size combinations, abundant accessories, and optional front and rear doors styles to meet your specific needs.

- Dimension (Width × Depth × Height): 600 × 1000 × 2072 mm.

- Cabinet Capacity: 42U.

- Front Door: High-density single open vented door.

- Rear Door: High-density double open vented door.

- Color: RAL9005Black.

Features & Benefits

- Security & Protection

   + Locking doors prevent unauthorized access to equipment;

   + Two pairs of adjustable 19-inch EIA rails provide a stable mounting structure.

- Flexibility

   + Vertical zero-U lacing panel pre-installed in rear corners for easy cable management;

   + Multiple cable entry options provide greater flexibility during installation;

   + Removable and lockable half height side panels Multi-Use;

   + Adaptable for use in data center build outs, computer rooms or data closets.

- Multi-Use

   + Adaptable for use in data center build outs, computer rooms or data closets.

- Key Features

   + Pre-installed recessed casters combine convenient mobility with minimal added height to provide additional stability;

   + Brush cable entry slots at front and back of top panel and sliding panels on bottom;

   + Ships fully assembled and can be configured with accessories to match your individual requirements.

Specification

Raw MaterialSPCC
Cabinet StructureAssembled frame structure
Front DoorHigh-density single open vented door
Rear DoorHigh-density double open vented door
Side PanelHalf height, removable side panel
19-inch Rail Power coated, 2.0mm thick SPCC
FinishPowder coated
Max. Open Angel180 degree
ColorRAL9005 Black
Maximum Static Load Capacity 1300 kgs
Dimension (Width × Depth × Height)600 × 1000 × 2072 mm
Capacity (U)42
ComplianceANSI/EIA RS-310-D
IEC60297-2
DIN41494 PART1
DIN41494 PART7
