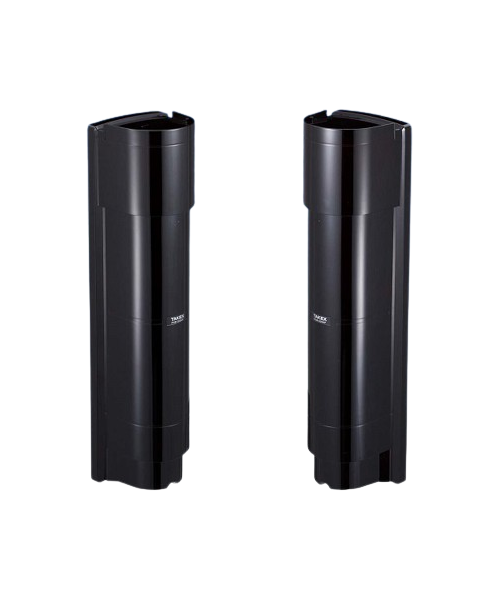

Twin Beam and Microwave Sensor TAKEX COM-50XTL
- COM-50XTL is a combination Twin Beam and Microwave Sensor designed to maintain reliable perimeter detection in all weather conditions, for true year-round protection whatever the season.
- Combination Twin Beam + Microwave Sensor.
- Double Modulation.
- IP65 housing.
- Lightning surge protection.
- Integrated height adjustment system.
- Low current consumption.
- New sound check system.
- Back to Back installation.
- Compact design.
Thông số kỹ thuật
| Model | COM-50XTL |
| Detection system | Microwave: Microwave interruption system Photoelectric beam: Near infrared pulsed beam interruption system (TR-RE 2 beam simultaneous interruption) |
| Microwave frequency | 24.11GHz |
| Infrared beam | Double modulation pulsed beam by LED |
| Protection distance | Outdoor 3.3ft (1m) to 165ft (50m) |
| Max. arrival distance | Microwave : Approx 330ft (100m) Photoerectric beam : 1650ft (500m) |
| Response time | Microwave: 0.04/ 0.3 sec. (selectable with DIP switch) Photoelectric beam: 0.05 to 0.7 sec. (changeable with volume switch) |
| Power supply | 12 to 30V DC (Non Polarity) |
| Current consumption | Transmitter : 31mA or less (when armed & Max.) Receiver : 24mA or less (when armed) 33mA or less (Max.) |
| Alarm output | Dry contact relay output form C Contact action: Interruption time (Min.2sec.) Contact capacity: 30V (AC/DC) 0.25A (resistive load) Protective resistor |
| Environmental/alarm output | Dry contact relay output form C *Environment/Alarm selectable Contact action: (Env.) Activated when weather condition gets worse (Alarm) Synchronized with alarm output Contact capacity : 30V (AC/DC) 0.25A (resistive load) Protective resistor |
| Tamper output | Dry contact relay output form b( N.C.) Action: Activated when cover is detached Contact capacity: 30V (AC/DC) 0.1A (resistive load) Protective resistor |
| Alarm LED | Red LED (Receiver) ON : when an alarm is initiated |
| Attenuation LED | Red LED (Receiver) ON : When beam is attenuated |
| Functions | Modulation frequency selectable, Tone indicator, Transmitting power indicator, Alarm memory indication, Programmed AGC, Auto-gain lock, Monitor jack, Tamper, Response time adjustment, MW/Beam changeover, Reception sensitivity display, Environmental module, Wireless checker connectable |
| Area adjustment range | Horizontal: ±90° Vertical: ±10° |
| Ambient temperature range | -13 to +140°F (-25 to +60°C) |
| Mounting position | Indoor, Outdoor (IP65) |
| Wiring | Terminals |
| Weight | Transmitter: 56oz (1,600g) Receiver: 57.8oz (1,650g) |
| Appearance | Resin (wine red) |
- Bảo hành: 12 tháng.
