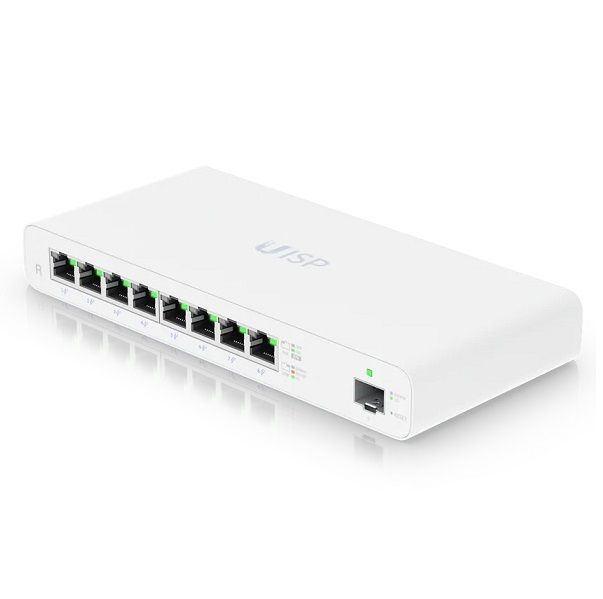

UISP Router UBIQUITI UniFi UISP-R
- Support 8-port GbE RJ45 with 27V passive PoE output.
- Support 1-port Gigabit SFP.
- 110W (27V) total PoE availability, 15W/port (2-pair)/ 30W/port (4-pair).
- Up to 1Gbps NAT throughput.
- Traffic shaping functionality and automated customer suspension.
- Firewall and OSPF routing.
Đặc tính kỹ thuật
| Mechanical | |
| Dimensions | 210.4 x 95 x 29 mm |
| Weight | 600g |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Dual-core 880 MHz, MIPS1004Kc |
| Memory | 512 MB DDR3 |
| Onboard flash storage | 512 MB NAND |
| Networking interface | (8) GbE RJ45 ports (1) 1G SFP port |
| Management interface | Ethernet In-Band Bluetooth BLE |
| Power method | External AC/DC adapter |
| Power supply | 27V DC, 4.4A power adapter (included) |
| Supported voltage range | 24-28V DC |
| Max. power consumption | 10W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Max. Passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| LEDs | |
| System | Status |
| RJ45 data ports | PoE Speed/link/activity |
| SFP data port | Link/activity |
| Software | |
| Management application | UISP: Version 1.4.0 and later |
- Bảo hành: 12 tháng.
