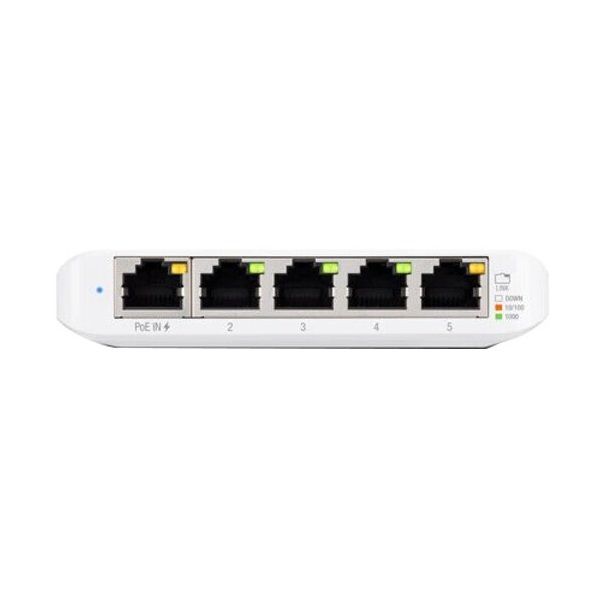

Switch UBIQUITI UniFi USW-Flex-Mini
- Support 2-port GbE RJ45, 1 GbE PoE input port for power.
- Total non-blocking throughput: 5Gbps.
- Switching capacity: 10Gbps.
- Forwarding rate: 7.44Mpps.
- Operating temperature: -5 to 45°C.
Đặc tính kỹ thuật
| Mechanical | |
| Dimensions | 107.2 x 70.2 x 21.2 mm |
| Weight | 150 g |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (5) GbE RJ45 ports |
| PoE interface | (1) PoE in |
| Total non-blocking throughput | 5 Gbps |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.44 Mpps |
| Power method | USB Type C, 5V PoE/PoE+, 44-57V DC, 0.05-0.04A |
| Power supply | 5V, 1A power adapter (Only single-unit packages include the 5V, 1A USB-C power adapter) |
| Supported voltage range | USB Type C: 4.7-5.3V DC PoE/PoE+: 44-57V DC |
| Max. power consumption | 2.5W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Button | Factory reset |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| Application Requirements | |
| UniFi Network | Version 5.12.5 and later |
- Bảo hành: 12 tháng.
