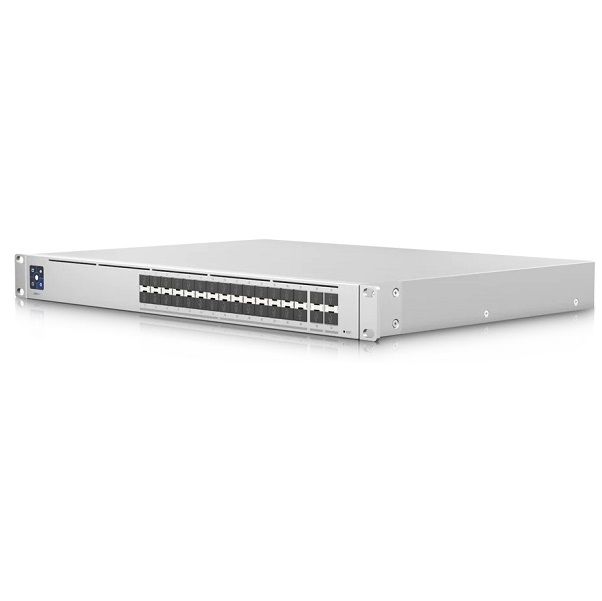

Switch UBIQUITI UniFi USW-Pro-Aggregation
- Support 28-port 1/10G SFP+, 4-port 1/10/15G SFP28.
- Total non-blocking throughput: 380Gbps.
- Switching capacity: 760Gbps.
- Forwarding rate: 565.44Mpps.
- Power supply: AC/DC, internal, 100W.
- Operating temperature: -5 to 40°C (23 to 104°F).
Đặc tính kỹ thuật
| Mechanical | |
| Dimensions | 442 x 325 x 44 mm |
| Weight | Without mounting brackets: 4.6 kg With mounting brackets: 4.7 kg |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (28) 1/10G SFP+ ports (4) 1/10/25G SFP28 ports |
| Total non-blocking throughput | 380 Gbps |
| Switching capacity | 760 Gbps |
| Forwarding rate | 565.44 Mpps |
| Power method | (1) Universal input, 100-240V AC, 2A Max., 50/60 Hz (1) USP RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100-240V AC |
| Max. power consumption | 100W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Services | SMB Layer 3 10/25 G Fiber switch |
| LCM display | (1) 1.3 inch LCM color touchscreen |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| SFP28/SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.1.25 and later |
- Bảo hành: 12 tháng.
