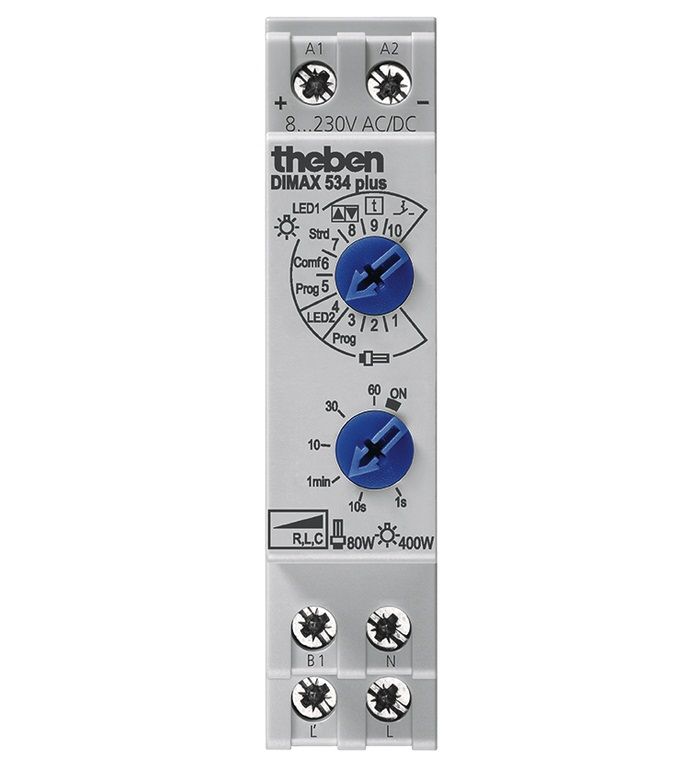

Universal dimmer comfort THEBEN DIMAX 534 plus
- Universal dimmer for R, L and C loads with automatic load detection.
- Comfort setting with wake-up and snooze function (can be deactivated), e.g. for children's bedrooms.
- Adjustable dimming rate (with automatic functions).
- One and two button operation for ease of use.
- Up to 3 light scenes can be called up via separate input (diode module required for more than one light scene).
- Central OFF/ON or light scene for up to 10 devices possible with one push button.
- Staircase light function with dimming function in accordance with DIN 18015 - 2 (resettable, long-time function).
- Can be controlled by push buttons or switches e.g. for combination with presence detectors or time switch.
- Switch-on brightness can be saved individually.
- Adjustable minimum brightness (required for ESL and LED).
- Multi-voltage input, e.g. for intercoms.
- Low stand-by consumption.
- Memory function in the event of power failure.
- Automatic electronic overload and overheating switch-off.
- Dimming switch-on function.
- Permanent ON function (test function).
- No minimum load requirement.
- Soft ON and Soft OFF protects the light.
- The dimming output can be upgraded by using additional dimmboosters 'DMB 1 T KNX' - dimming output 300 W/VA for each dimmbooster.
Specifications
| Model | DIMAX 534 plus |
| Operating voltage | 230VAC |
| Frequency | 50Hz |
| Width | 1 modules |
| Installation type | DIN rail |
| Stand-by consumption | ~0,2W |
| Capacity loss max. | 4,5W |
| Incandescent/halogen lamp load | 400W |
| Transformer electronic (C) | 300W |
| Transformer inductive (L) | 400W |
| Energy saving lamps | Trailing edge: 400 W |
| LED lamp | Trailing edge: 400 W |
| Ambient temperature | -30°C … +50°C |
| Protection class | II |
| Type of protection | IP20 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
