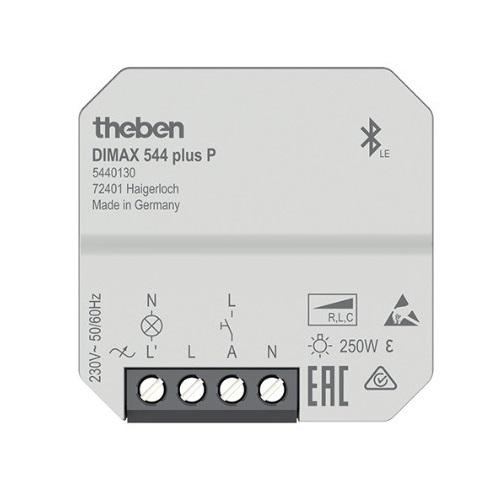

Universal Dimmer THEBEN DIMAX 544 plus P
- Part Number: 5440130.
- Universal dimmer for R, L and C loads with automatic load detection.
- Operation by button or app via Bluetooth Low Energy.
- Optimised settings for LEDs, incandescent lamps.
- Easy installation thanks to a highly compact housing.
- Ideal for all dimmable LEDs and halogen lamps.
- Convenient snooze function.
- Adjustable minimum brightness for LEDs, adjustable dimming response.
- App for Android and iOS.
- Memory function saves the most recently set light level value and then dims to this value the next time it is switched on.
- Adjustable staircase light function, special load setting, scene.
Đặc tính kỹ thuật
| Model | DIMAX 544 plus P |
| Operating voltage | 230 VAC |
| Frequency | 50 – 60 Hz |
| Installation type | Flush-mounted |
| Stand-by consumption | ~0,15 W |
| Incandescent/halogen lamp load | 250 W |
| Transformer electronic (C) | 250 W |
| LED lamp | Trailing edge: 250 W |
| Programmierung per App | Yes |
| Multi-function | Yes |
| Ambient temperature | -25 °C … +45 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
