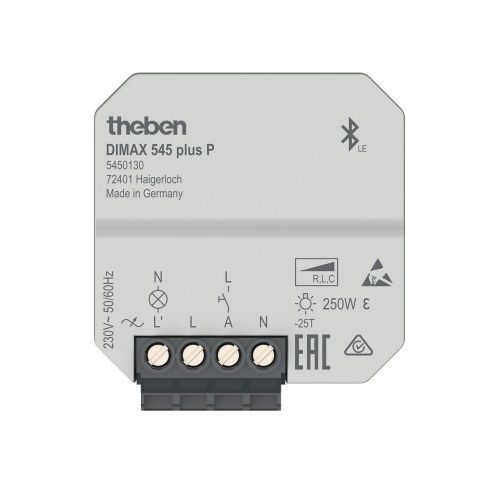

Universal Dimmer THEBEN DIMAX 545 plus P
- Universal dimmer for R, L and C loads with automatic load detection.
- Operation by button or app via Bluetooth Low Energy.
- Adjustable minimum brightness for LEDs.
- Adjustable dimming response.
- Adjustable staircase light function.
- App for Android and iOS.
- Time functions.
- Astronomical functions.
- Night break.
- Optimised settings for LEDs, incandescent lamps.
- Easy installation thanks to a highly compact housing.
- Ideal for all dimmable LEDs and halogen lamps.
- Memory function saves the most recently set light level value and then dims to this value the next time it is switched on.
- Convenient snooze function.
- Special load setting.
- Sequential scenes.
- Password protection possible.
- „Gentle“ lamp-conserving function for switching on and off.
- Automatic detection of the load type.
- Overheating protection against overload.
- Short-circuit protection.
Đặc tính kỹ thuật
| Operating voltage | 230 V AC |
| Frequency | 50 – 60 Hz |
| Installation type | Flush-mounted |
| Stand-by consumption | ~0.15 W |
| Incandescent/halogen lamp load | 250 W |
| Transformer electronic © | 250 W |
| LED lamp | Trailing edge: 250 W |
| Programmierung per App | ✓ |
| Ambient temperature | -25°C ... 45°C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
