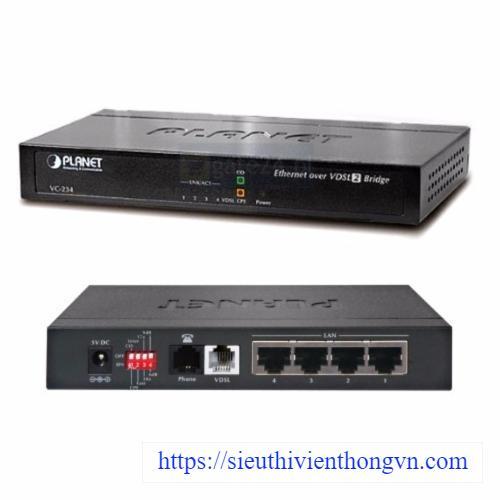

4-Port Ethernet over VDSL2 Bridge (Profile 30a) PLANET VC-234
- Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution.
- One box design, CO / CPE selectable via DIP Switch.
- Defines symmetric band plan for the transmission of upstream and downstream signals.
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet standards.
- DMT (Discrete Multi-Tone) line coding.
- Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control.
- Built-in POTS splitter to share voice and data.
- Two RJ11 connectors for each VDSL port, one for VDSL connection and one for POST connection.
- Voice and data communication can be shared simultaneously based on the existing telephone wire.
- 4 x 10/100Mbps RJ45 port, Auto-Negotiation and Auto-MDI/MDI-X.
- Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent.
- Hardware IGMP Snooping for Multimedia service.
- VDSL2 stand-alone transceiver for simple bridge modem application.
- Advantage of minimum installation time (Simply as Plug-and-Play).
- Selectable target profile and target SNR margin.
- Supports extensive LED indicators for network diagnosis.
Đậc tính kỹ thuật
Ports | 10/100Base-TX: 4 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X |
VDSL: 1 RJ-11, female Phone Jack | |
PHONE: 1 RJ-11, Built-in splitters for POTS connection | |
DIP Switch | 4 position DIP switch |
Functionality | CO / CPE mode select |
Selectable fast and interleaved mode | |
Selectable target 17a / 30a profiles | |
Selectable target SNR mode | |
Encoding | VDSL-DMT: ITU-T G.993.1 VDSL, ITU-T G.997.1, ITU-T G.993.2 VDSL2 (Profile 17a/30a Support) |
LED Indicators | One Power |
4 for RJ-11/VDSL2 | |
1 for per RJ45 10/100Base-TX port | |
Cabling | Ethernet |
10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) | |
100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft) | |
VDSL | |
Twisted-pair telephone wires (AWG24 or better) up to 1.4km | |
Performance (Downstream / Upstream) | 17a profile |
300m -> 99/70Mbps | |
400m -> 99/60Mbps | |
600m -> 90/45Mbps | |
800m -> 50/28Mbps | |
1000m -> 40/12Mbps | |
1200m -> 20/7Mbps | |
1400m -> 20/4Mbps | |
30a profile | |
300m -> 100/100Mbps | |
400m -> 90/90Mbps | |
600m -> 69/55Mbps | |
800m -> 48/9Mbps | |
Switch Specifications | |
Switch Processing Scheme | Store-and-Forward |
Address Table | 2K entries |
Flow Control | Back pressure for half duplex |
IEEE 802.3x Pause Frame for full duplex | |
Switch fabric | 0.8Gbps |
Throughput (packet per second) | 0.59Mpps |
Network cables | 10/100Base-TX: |
2-Pair UTP Cat. 3, 4, 5 (100meters, max.) | |
EIA / TIA-568 100-ohm STP (100meters, max.) | |
Standard Conformance | |
Regulation Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10Base-T |
IEEE 802.3u 100Base-TX | |
ITU-T: G.993.1 (VDSL), G.997.1, G.993.2 VDSL2 (Profile 17a/30a) | |
Power Requirements | 5V DC, 2A |
Power Consumption | 7.2 Watts/ 24 BTU |
Dimensions | 155 x 86 x 26 mm |
Weight | 368g |
- Sản suất tại Taiwan.
- Bảo hành: 12 tháng.
