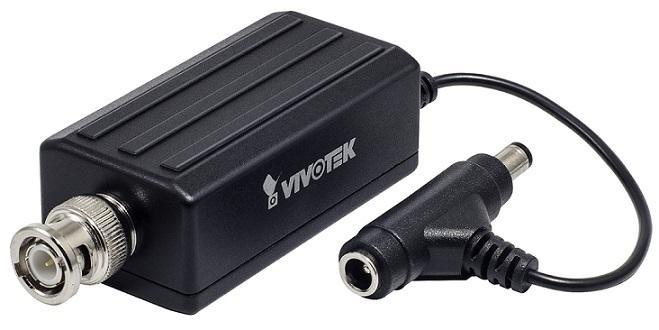

Video Server Vivotek VS8100-V2
-30 fps at D1 Resolution.
-Real-time H.264, MJPEG Compression (Dual Codec).
-One-way Audio.
-Smart Stream II to Optimize Bandwidth Efficiency.
-RS-485 Interface for PTZ Camera Control.
-Ultra-mini Size for Front-end Installation and Discreet Surveillance Application.
-12VDC Power Sharing with analog camera.
Đặc tính kỹ thuật
| Model | VS8100-v2 |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 256MB |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | 30 fps @ 720x480 |
| 25 fps @ 720x576 | |
| Maximum Streams | 3 simultaneous streams |
| Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream II |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 2DNR |
| Audio | |
| Audio Capability | One-way Audio |
| Compression | G.711, G.726 |
| Interface | External microphone input |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, SSL/TLS, ARP |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45). It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server |
| File upload via HTTP, SMTP, FTP and NAS server | |
| General | |
| Connectors | RJ-45 for Network connection x 1 |
| Male BNC for Analog video input x 1 | |
| RS-485 Terminal Block x 1 | |
| Audio input x 1 | |
| 12VDC output (to camera) x 1 | |
| 12VDC input (to power source) x 1 | |
| Supported P/T/Z Protocol | DynaDome/SmartDome, Pelco D, Pelco P, Lilin, Samsung scc643 and customized |
| LED Indicator | System power and status indicator |
| Power Input | 12VDC |
| Power Consumption | Max. 3 W |
| Dimensions | 65 (D) x 34 (W) x 25 (H) mm |
| Weight | 64 g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~122°F) |
| Working Temperature: 0°C ~ 50°C (32°F ~122°F) | |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) |
| Internet Explorer 10/11 | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
-Bảo hành: 24 tháng.
