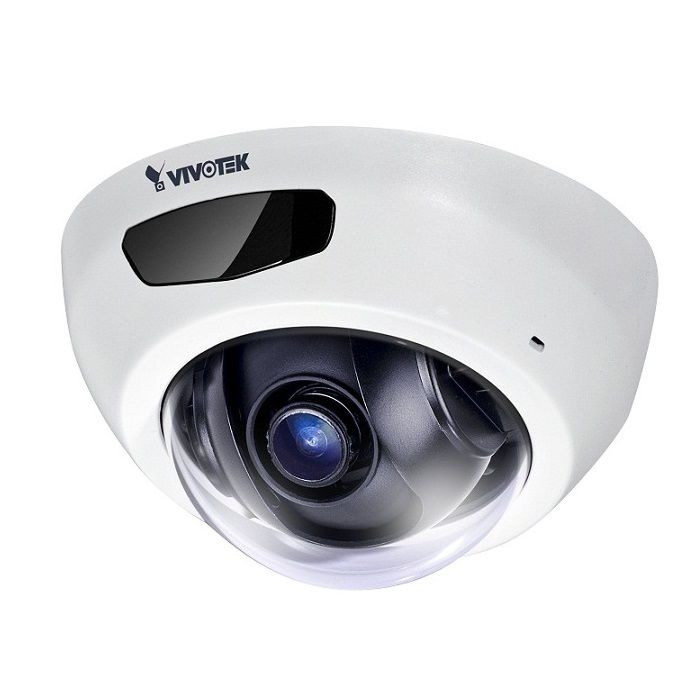

Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek FD8166A-N
- Cảm biến hình ảnh: 1/2.8 inch Progressive CMOS.
- Độ phân giải: 1920 x 1080 (2 Megapixel).
- Tốc độ khung hình: 30fps@ 1920 x 1080.
- Ống kính: f = 2.8mm.
- Tầm quan sát hồng ngoại: 6 mét, hỗ trợ Smart IR.
- Chuẩn nén hình ảnh: H.264/ MJPEG.
- Hỗ trợ Smart Stream II tối ưu hiệu quả băng thông.
- Công nghệ chống ngược sáng WDR Enhance.
- Hỗ trợ chức năng SNV (Supreme Night Visibility) trong điều kiện ánh sáng yếu.
- Chức năng giảm nhiễu 3DNR.
- Hỗ trợ Khe cắm thẻ nhớ MicroSD/ SDHC.
- Nguồn điện: PoE 802.3af.
Specifications
| Model | FD8166A-N |
| Camera Features | |
| Image Sensor | 1/2.8 inch Progressive CMOS |
| Maximum Resolution | 1920 x 1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | f= 2.8mm |
| Aperture | F1.8 |
| Field of View | 113° (Horizontal), 63° (Vertical), 136° (Diagonal) |
| Shutter Time | 1/5s ~1/32,000s |
| WDR Technology | WDR Enhanced |
| Minimum Illumination | 0.05 Lux @ F1.8 (Color), < 0.001 Lux @ F1.8 (B/W), 0 Lux with IR illumination on |
| Pan/Tilt Range | Pan: 45°, Tilt: 33° ~ 90° |
| Day/Night | Removable IR-cut filter for day & night function |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in,12x built in) |
| IR Illuminators | Built-in 940nm IR illuminators, effective up to 6 meters with Smart IR |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot; Seamless Recording |
| Video | |
| Compression | H264, MJPEG |
| Maximum Streams | 4 simultaneous streams |
| Dynamic Range | 70 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control; Smart Stream II |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction, video rotation, defog |
| Network | |
| User | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP,ARP, SSL, TLS |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ45) |
| Audio | |
| Audio Capability | One-way audio |
| Compression | G711, G726 |
| Interface | Built-in microphone |
| Effective Range | 5m |
| Intelligent Video | |
| VCA | Line crossing detection, field detection, loitering detection |
| Video Motion Detection | Five-window video motion detection |
| General | |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 4.75 W |
| Dimensions | Ø 90 x 50 mm |
| Weight | 145.8g |
- Sản xuất tại Taiwan.
- Bảo hành 24 tháng.
