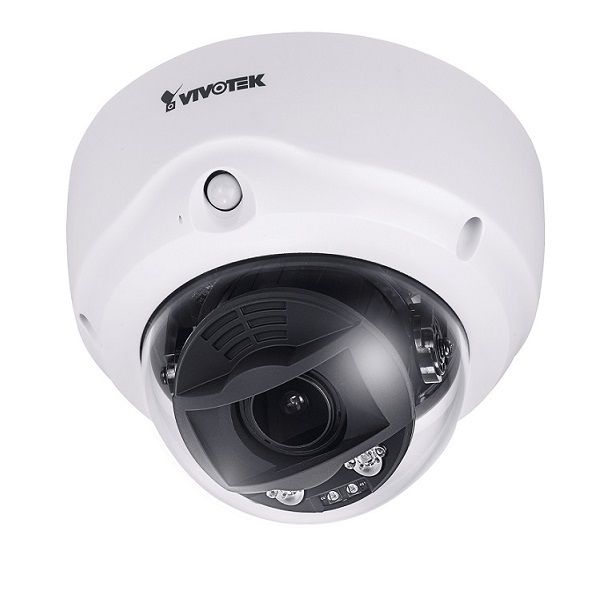

Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek FD9165-HT
- Cảm biến hình ảnh: 1/2 inch Progressive CMOS.
- Độ phân giải: 2 Megapixel (1920x1080).
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Ống kính P-iris với tiêu cự 4 ~ 9 mm, điều chỉnh tiêu cự từ xa.
- Tầm quan sát hồng ngoại: 50 mét.
- Hỗ trợ Smart Stream III tối ưu hiệu quả băng thông.
- Chức năng chống ngược sáng WDR Pro II cung cấp cho camera khả năng nhìn vượt trội trong môi trường cực sáng và tối.
- Hỗ trợ chức năng SNV II (Supreme Night Visibility) trong điều kiện ánh sáng yếu.
- Chức năng giảm nhiễu kỹ thuật số 3DNR.
- Công nghệ Smart IR II giúp tránh hiện tượng quá sáng.
- Phát hiện chuyển động thông minh để giảm báo động giả.
- Bảo mật IoT Trend Micro.
- Hỗ trợ âm thanh 2 chiều.
- Hỗ trợ khe cắm thẻ nhớ MicroSD/SDHC/SDXC.
- Nguồn điện cung cấp: DC 12V, AC 24V.
- Chức năng cấp nguồn qua mạng (IEEE 802.3af PoE Class 0).
Đặc tính kỹ thuật
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 512MB |
| Camera Features | |
| Image Sensor | 1/2 inch Progressive CMOS |
| Maximum Resolution | 1920x1080 (2MP) |
| Lens Type | Motorized, Vari-focal, Reomte Focus |
| Focal Length | f = 4 ~ 9 mm (f = 2.8 ~ 11.4 mm, equivalent focal length @ 1/2.8) |
| Aperture | F1.3 ~ F2.2 |
| Auto-iris | P-Iris |
| Field of View | 46° ~ 120° (Horizontal) 26° ~ 60° (Vertical) 53° ~ 152° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro II |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.01 Lux @ F1.3 (Color), 50IRE 0.002 Lux @ F1.3 (Color), 30IRE 0 Lux with IR illumination on |
| Pan Range | 353° |
| Tilt Range | 65° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| IR Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4 |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.265 & H.264 & MJPEG |
| Maximum Frame Rate | 60 fps @ 1920x1080 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 66 dB |
| Dynamic Range | 140 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog, deblur, metering |
| Audio | |
| Audio Capability | Two-Way Audio (full duplex) |
| Compression | G711, G726 |
| Interface | Built-in microphone External microphone input External line output |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specifications available at www.onvif.org |
| System Integration | |
| Smart Motion Detection | Five-window video motion detection, people detection, time filter |
| Smart VCA | Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection *Please access http://license.vivotek.com/ to get the free trial license. |
| VADP Package | Trend Micro IoT Security, Deep Learning VCA (Smart Motion Detection, Smart VCA) |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, PIR detection, shock detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) |
| Alarm Events | Event notification via digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection Audio input Audio output AC 24V DC 12V Digital input *2 Digital output *2 TV out |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V DC 12V IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 10.7 W |
| Dimensions | Ø 139 x 104 mm |
| Weight | 490 g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) Working Temperature (IR off): -10°C ~ 50°C (14°F ~ 122°F) Working Temperature (IR on): -10°C ~ 45°C (14°F ~ 113°F) |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
- Bảo hành: 24 tháng.
