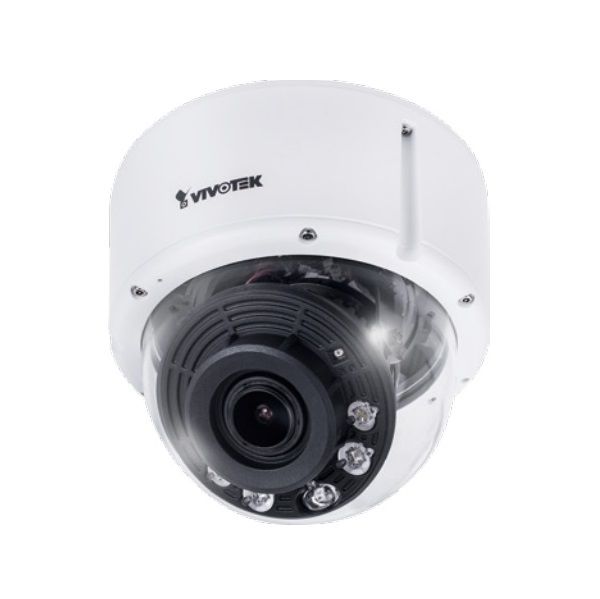

Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek FD9365-HTV
- Cảm biến hình ảnh: 1/2 inch Progressive CMOS.
- Độ phân giải: 2.0 Megapixel (1920x1080).
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Ống kính P-iris với tiêu cự 4 ~ 9 mm, điều chỉnh tiêu cự từ xa.
- Tầm quan sát hồng ngoại lên đến 50 mét với công nghệ Smart IR II.
- Hỗ trợ Smart Stream III tối ưu hiệu quả băng thông.
- Chức năng chống ngược sáng WDR Pro II cung cấp cho camera khả năng nhìn vượt trội trong môi trường cực sáng và tối.
- Hỗ trợ chức năng SNV II (Supreme Night Visibility) trong điều kiện ánh sáng yếu.
- Chức năng giảm nhiễu kỹ thuật số 3DNR.
- Hỗ trợ âm thanh 2 chiều.
- Hỗ trợ khe cắm thẻ nhớ MicroSD/SDHC/SDXC.
- Nguồn điện cung cấp: AC 24V, DC 12V, IEEE 802.3af PoE Class 0
- Tiêu chuẩn chống nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Đặc tính kỹ thuật
| Model | FD9365-HTV: Vari-focal, Remote Focus |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 512MB |
| Camera Features | |
| Image Sensor | 1/2 inch Progressive CMOS |
| Maximum Resolution | 1920x1080 |
| Lens Type | Vari-focal, Remote Focus |
| Focal Length | f = 4 ~ 9 mm f = 2.8 ~ 11.4 mm (equivalent focal length @ 1/2.8 inch) |
| Aperture | F1.3 ~ 2.2 |
| Auto-iris | P-iris |
| Field of View | 46° ~ 120° (Horizontal) 26° ~ 60° (Vertical) 53° ~ 152° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro II |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.04 Lux @ F1.3 (Color), 50IRE 0.002 Lux @ F1.3 (Color), 30IRE 0 Lux with IR LED on |
| Pan Range | 353° |
| Tilt Range | 65° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) |
| IR Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*5 |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 60 fps @ 1920X1080 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 66 dB |
| Dynamic Range | 140 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video Rotation, 3DNR, DIS, HLC |
| Audio | |
| Audio Capability | Two-way audio |
| Compression | G.711, G.726 |
| Interface | Built-in Mic External Mic input External line output |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS, NTCIP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection Audio line in Audio line out AC 24V DC 12V Digital input *2 Digital output *2 TV out |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V, DC 12V, IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 11.9 W |
| Dimensions | Ø 155 x 138 mm |
| Weight | 1,300 g |
| Casing | IP66, IK10 |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F) Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F) |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) Internet Explorer 10/11 |
- Bảo hành: 24 tháng.
