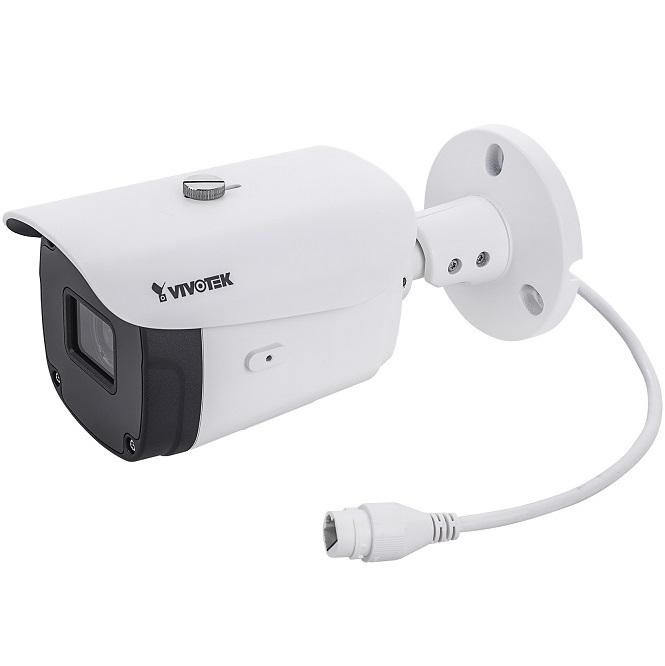

Camera IP hồng ngoại 5.0 Megapixel Vivotek IB9388-HT
- Cảm biến hình ảnh: 1/2.7 inch Progressive CMOS.
- Độ phân giải camera ip: 5.0 Megapixel.
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
- Ống kính: f= 2.8 ~ 12 mm.
- Tầm quan sát hồng ngoại: 30 mét.
- Công nghệ chống ngược sáng WDR Pro.
- Hỗ trợ chức năng SNV (Supreme Night Visibility) trong điều kiện ánh sáng yếu.
- Hỗ trợ khe cắm thẻ nhớ MicroSD/SDHC/SDXC.
- Tiêu chuẩn chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nhiệt độ hoạt động: -30°C ~ 60°C.
Đặc tính kỹ thuật
| Camera Features | |
| Image Sensor | 1/2.7 inch Progressive CMOS |
| Max. Resolution | 2560×1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f= 2.8 ~ 12 mm |
| Aperture | F1.4 ~ F2.8 |
| Auto-iris | Fixed-iris |
| Field of View | 30° ~ 88° (Horizontal) 23° ~ 65° (Vertical) 38° ~ 115° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.035 lux @ F1.4 (Color) 0 Lux with IR illumination on |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 20 fps @ 2560×1920 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 67 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bi trate, Smart Stream III |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| VADP Package | Trend Micro IoT Security, Stratocast |
| Alarm and Event | |
| Alarm Triggers | Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, temperature detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) |
| Alarm Events | Event notification via email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for Network 10/100 Mbps PoE connection*1 |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 12.95 W (IR on) Max. 12 W (IR off) |
| Dimensions | 85 x 85 x 214.5 mm |
| Weight | 738 g |
| Casing | IP66, IK10(Housing) |
| Safety Certifications | CE, FCC Class B, UL, LVD, VCCI, C-Tick |
| Working Temperature | -30°C ~ 60°C |
| Humidity | 98% |
- Bảo hành: 24 tháng.
