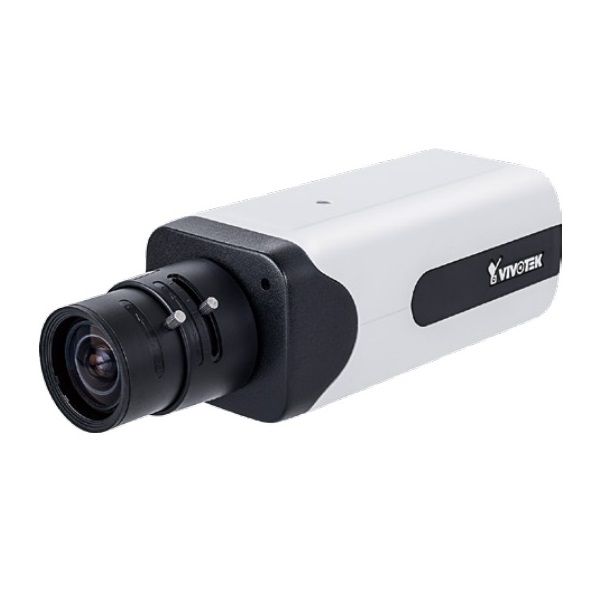

Camera IP 8.0 Megapixel Vivotek IP9191-HP
- Cảm biến hình ảnh: 1/2 inch Progressive CMOS.
- Độ phân giải: 8.0 Megapixel.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Zoom số: 48x.
- Điều chỉnh tiêu cự từ xa dễ dàng với chức năng Remote Back Focus.
- Chức năng ổn định hình ảnh kỹ thuật số DIS (Digital Image Stabilization).
- Chức năng chống ngược sáng WDR Pro cho khả năng camera nhìn rõ trong môi trường cực sáng và tối.
- Chức năng giảm nhiễu số 3DNR.
- Hỗ trợ công nghệ Smart Stream III.
- Hỗ trợ khe cắm thẻ nhớ MicroSD/SDHC/SDXC.
- Hỗ trợ âm thanh 2 chiều.
- SNV (Supreme Night Visibility) cho điều kiện ánh sáng yếu.
- Hỗ trợ hệ điều hành: Microsoft Windows 8/7.
- Hỗ trợ trình duyệt Web: Mozilla Firefox 7~43 (streaming only); Internet Explorer 10/11.
- Nguồn điện đầu vào: DC 12V, AC 24V, IEEE 802.3af PoE Class 0.
Đặc tính kỹ thuật
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 1GB |
| Camera Features | |
| Image Sensor | 1/2 inch Progressive CMOS |
| Maximum Resolution | 3840x2160 |
| Lens Type | Vari-focal, Remote Back Focus |
| Focal Length | f = 3.9 ~ 10 mm |
| Aperture | F1.5 ~ F2.7 |
| Auto-iris | P-iris (DC-iris reserved) |
| Field of View | 45° ~ 119° (Horizontal) 25° ~ 63° (Vertical) 52° ~ 142° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.02 Lux @ F1.5 (Color) 0.01 Lux @ F1.5 (B/W) |
| Pan/Tilt/Zoom Functionalities | ePTZ:48x digital zoom (4x on IE plug-in, 12x built in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 3840x2160 (WDR Pro on) 120 fps @ 1920x1080 (WDR Pro off) |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 60.5 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile |
| Audio | |
| Audio Capability | Two-way audio |
| Compression | G.711, G.726 |
| Interface | External Mic input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/ TLS |
| Interface | 10 Base-T/100 Base-TX Ethernet /1000 Base-T (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card |
| General | |
| Connectors | RJ-45 cable connector for Network 10/100/1000 Mbps PoE connection *1 Audio input *1 Audio output *1 DC 12V/AC 24V power input *1 Digital input *2 Digital output *2 RS-485 *1 |
| LED Indicator | System power and status indicator |
| Power Input | DC 12V, AC 24V, IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 12 W |
| Dimensions | 209 x 70 x 61 mm |
| Weight | 743 g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
- Bảo hành: 36 tháng.
