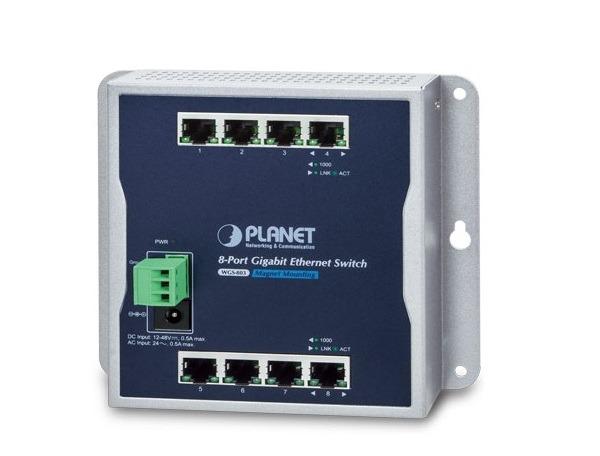

8-Port 10/100/1000T Wall-mount Switch PLANET WGS-803
Physical Port
- 8-port 10/100/1000BASE-T Gigabit RJ45 copper
Layer 2 Features
- High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 9K jumbo frame supported in 1000Mbps duplex mode
- Automatic address learning and address aging
Industrial Case/ Installation
- Compact size, wall-mounted, magnetic wall mount and DIN-rail design
- IP30 metal chassis
- Supports -10 to 60 degrees C operating temperature
- Supports EFT 6000VDC protection for power line
- Supports ESD 6000VDC Ethernet protection
- 12V~48V DC input range for booting with polarity reverse protect function
Specifications
| Hardware | |
| Network Connector | 8-port RJ45 for 10/100/1000BASE-T |
| Switch Architecture | Store and forward |
| MAC Address Table | 8K MAC address table with auto learning function |
| Data Buffer | 1Mbit |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps@64bytes |
| Jumbo Frame | 9Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | Power LED: - Power (Green) 10/100/1000BASE-T Port: - 1000 (Green) - LNK/ACT (Green) |
| Connector | Removable 3-pin terminal block for power input - Pin 1/2 for DC Power - Pin 3 for earth ground DC power jack with 2.0mm central pole |
| Power Requirements | 12~48V DC, 0.5A (max.) |
| Power Consumption | 6 watts / 20BTU |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 metal |
| Dimensions (W x D x H) | 148 x 24.2 x 134 mm |
| Weight | 498g |
| Installation | Wall mount, magnetic wall mount and DIN-rail kit |
| Standard Conformance | |
| Standard Compliance | IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Flow Control |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Environment | |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
