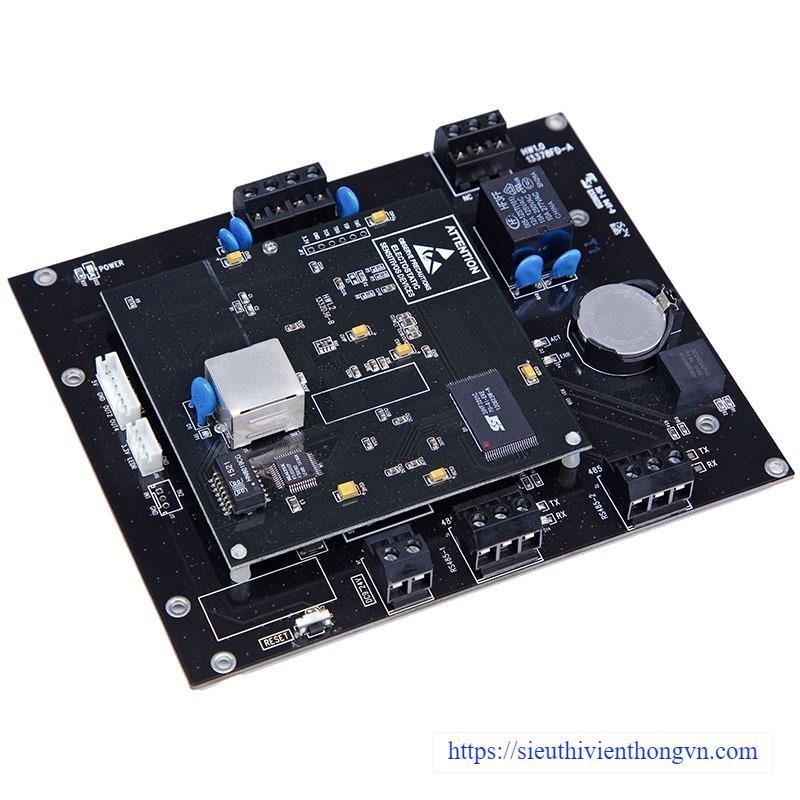

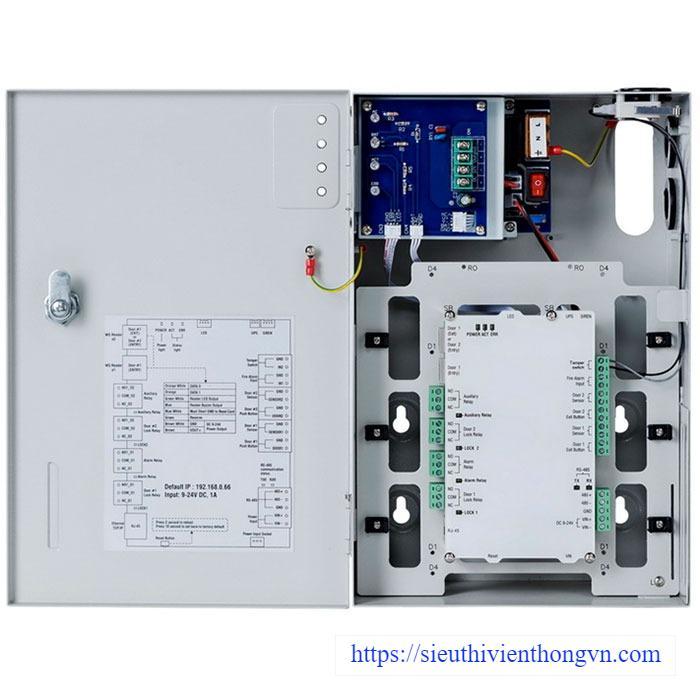

Wiegand and RS485 Elevator Access Control Panel SEMAC S3-V3

Wiegand and RS485 Elevator Access Control Panel SEMAC S3-V3

  • MS 000002563
  • CHIYU
Giá : Liên hệ

FEATURES HIGHLIGHTS

  • RS485 connection over controller and reader.
  • 128-Storey floor control per SEMAC-S3-V2 system.
  • 7-Storey hall call per SEMAC-S3-V2 system.
  • 20,000 ~ 50,000 cardholders capacity per system.
  • 10 layers bypass time zone for doors/users access authority.
  • Web based controllable.
  • Software (Somac 2.2 : Lift control module).

GENERAL DATA

  • Software Application: SoMac / Browser
  • Lift Control: 1
  • Floor control: Black list: 80 floors (Needs 5 pcs of BF-333)
  • White list: 128 floors (Needs 8 pcs of BF-333)
  • Call Lift: 7
  • Verification Mode: White, Black, Combo list
  • User type: 5 (Super user / user / visitor / defense / Guard)
  • User Capacity: 20
  • Logs capacity: 65
  • System log: 1
  • Reader type: RS485 / WG (Needs BF20 / Bf50 Relay box)
  • LED indicator: Power / ACT / ERR
  • Time Sets / Zones / Group: Yes
  • Holiday Dates: Yes
  • Access & Event & System Logs: Yes
  • Inputs: 3 Inputs
  • (1) Fire Alarm
  • (2) Maintenance
  • (3) External
  • RS-485: 2
  • (1) Intercom
  • (2) BF-333 & RS-485 reader
  • Web Base Management: Yes

Bình luận

BỘ NGUỒN TRUNG TÂM CHIYU SEMAC-D1,D2,D4

CHIYU SEMAC-D2 POWER QUẢN LÝ NGUỒN

- Power Requirement: DC 9 ~ 24V

- Power Requirement: DC 9 ~ 24V

- Power Box LED Connection: yes

- Box Spec: 10A 277VAC / 28VDC

- Extend Input Spec: 0 ~ 3.3V

- Extend Output Spec: 0 ~ 3.3V

- Wiegand Reader Power Requirement: 9 ~ 24V

- Max. Range For Wiegand Reader: 80 Meters

- Operation Humidity: 5% ~ 80%, RH

- Dimension / Weight: 138 x 114 x 27mm / 150g

- Access Log: 60,000 entries

- Sensor Connection: yes

- Power Consumption (Exclude external device): 180mA

- Suggest Power Spec: 1A

- Mở rộng hộp sắt bảo vệ

- Đèn báo tín hiệu nguồn

- Lắp thêm bình ắc quy 12Vol / 7ah

Mua hàng

CHIYU SEMAC-S3-V2 (RS485)

- Kết nối nguồn đầu đọc thẻ RS485.

- Tích hợp công nghệ webpage không cần cài đặt phần mềm.

- Quản lý 20.000 ~ 50.000 users, lưu trữ 65.535 sự kiện offline máy tính.

- Kết nối: TCP/IP, RS485, Wiegand.

- Đầy đủ chức năng access control: 255 time set, 120 timezone, 255 groups.

- Kết nối: hệ thống báo cháy, camera an ninh.

- Nguồn: DC 9 ~ 24V.

Mua hàng

Đầu đọc thẻ RFID Chiyu WEBPASS LITE

Hoạt động kết nối PC (Networking)
Hỗ trợ Webpage (hoặc cài đặt phần mềm).
Bộ nhớ trong quản lý 20.000 user
Hỗ trợ mở cửa bằng mã PIN hoặc Thẻ
Hỗ trợ 120 TimeZone
Lưu trữ 65.535 giao dịch khi Off-Line, 1,536 sự kiện của thiết bị
Remote từ webpage.
Hỗ trợ TCP/IP kết nối máy tính, Wiegand
Mở rộng kết nối trực tiếp camera IP.
Nguồn: 9-24V-DC
Môi trường hoạt động: 0-65C
Kích thước: 120x80x28 / 150g

Mua hàng

Smart Face Recognition Terminal CSS-V12

Facial recognition Access Control Terminal can apply both on Access control and Time attendance. With its user friendly and high security, accompanied by Robust Performance feature, make this Face Access Controller more reliable in the Market.

Mua hàng
