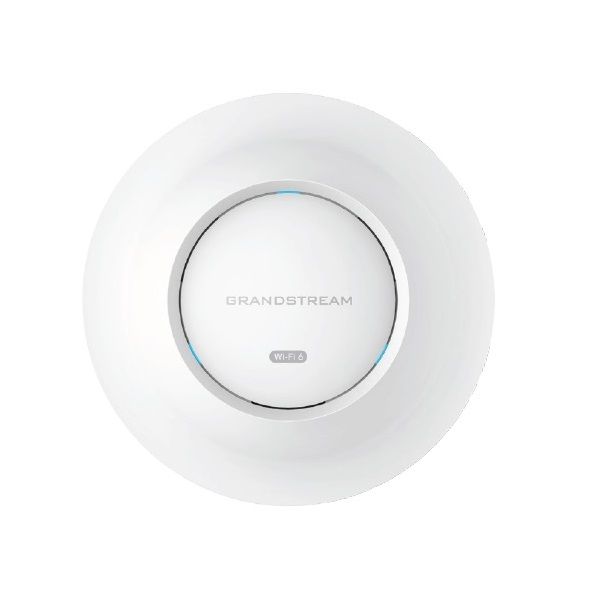

Wi-Fi 6 Access Point Grandstream GWN7664 (Indoor)

Wi-Fi 6 Access Point Grandstream GWN7664 (Indoor)

  • MS 0017280
  • GRANDSTREAM
Giá : Liên hệ

Wi-Fi 6 Access Point Grandstream GWN7664 (Indoor)

Wi-Fi 6 Access Point Grandstream GWN7664 (Indoor)

- 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput.

- Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology.

- Up to 175-meter coverage range.

- Supports 750+ concurrent Wi-Fi client devices.

- Includes 1x 1G Port and 1x 2.5G Port.

- Advanced QoS to ensure real-time performance of low-latency applications.

- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device.

- Self power adaptation upon auto detection of PoE or PoE+.

- Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management.

Đặc tính kỹ thuật

Wi-Fi StandardsIEEE 802.11 a/b/g/n/ac/ax
Antennas8 individual internal antennas, 4 per band
2.4GHz, gain 3dBi
5 GHz, gain 4dBi
Wi-Fi Data Rates5G:
IEEE 802.11ax: 8 Mbps to 2402 Mbps
IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 8 Mbps to 1147 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands2.4GHz Radio: 2412 - 2484 MHz
5GHz Radio: 5180 - 5825 MHz
Channel Bandwidth2.4G: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)
Wi-Fi and System SecurityWEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO4×4:4 2.4GHz
4×4:4 5GHz
Coverage RangeUp to 175 meters
Maximum TX Power5G: 25dBm
2.4G: 26dBm
Receiver Sensitivity2.4G
802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11
SSIDs32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients750+
Network Interfaces1x 1G Port and 1x 2.5G Port, support 3.5Gbps aggregate wire throughput
Auxiliary Ports1x Reset Pinhole, 1x Kensington lock
MountingIndoor wall mount or ceiling mount, kits included
LEDs1 tri-color LEDs for device tracking and status indication
Network ProtocolsIPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS802.11e/WMM, VLAN, TOS
Network ManagementEmbedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN Aps
Power and Green Energy EfficiencyPoE 802.3af/ 802.3at;
Maximum Power Consumption: 17W
EnvironmentalOperation: 0°Cto 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
PhysicalUnit Dimension: 205.3mm(L)x205.3mm(W)x405.9mm(H); Unit Weight: 0.714Kg
Entire Package Dimension: 258x247x86mm; Entire Package Weight: 1.06Kg
ComplianceFCC, CE, RCM, IC

- Sản phẩm chính hãng Grandstream của Mỹ.

- Sản xuất tại Trung Quốc.

- Bảo hành: 36 tháng.
