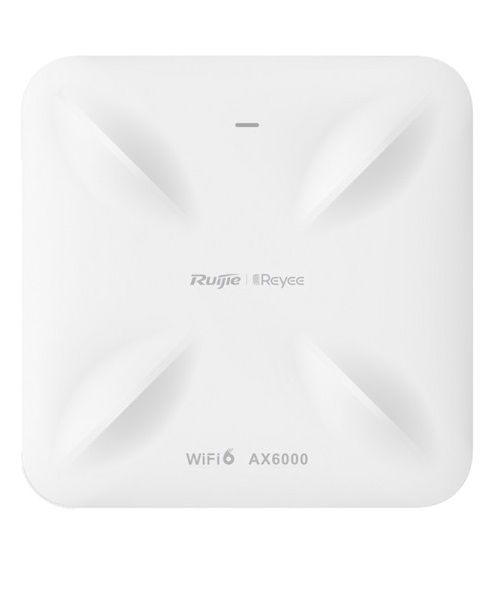

Wi-Fi 6 AX6000 High-density Multi-G Ceiling Access Point RUIJIE RG-RAP2260(H)
- Network Port: 2 x 100M/1000/2500 Base-T.
- Wireless Protocol: 802.11ax (Wi-Fi 6), 5.95Gbps.
- Antenna: Built-in Omni-directional.
- MIMO: 4x4 @2.4GHz, 4x4 @5GHz.
- Build ultra-high performance Wi-Fi with 5.95Gbps throughput.
- Client connections over 500, higher practical performance as well.
- Boost Internet speed with 5Gbps uplink for the future.
- Easily install extra AP with Reyee Mesh technology.
- Support standalone captive portal, easy to enable Wi-Fi authentication.
- Operating Temperature: 0°C~40°C.
- Dimension: 230 x 230 x 49.5 mm.
Specifications
| Wi-Fi Standards | Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 5 (IEEE 802.11ac Wave 2) Wi-Fi 4 (IEEE 802.11n) IEEE 802.11a IEEE 802.11b/g |
| MIMO | 2.4GHz, 4×4, MU-MIMO 5GHz, 4×4, MU-MIMO |
| Max. Wi-Fi Speed | 2.4GHz: 1148Mbps 5GHz: 4804Mbps |
| Antenna | 8 |
| Antenna Type | Built-In Omnidirectional |
| Antenna Gain | 2.4GHz: 3dBi 5 GHz: 4dBi |
| Fixed Ports | 2 x 100/1000/2500 Base-T ports 1 × Reset button 1 x DC port |
| Max. Clients | 512 |
| Recommended Clients | 130 |
| Max. SSIDs | 8 |
| Recommended Wi-Fi Coverage Radius | 2.4GHz: 40 meters 5GHz: 70 meters The Wi-Fi coverage is related to the installation environment of the access point. |
| Max. Wi-Fi Coverage Radius | 150 meters |
| Operation Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz country-specific restrictions apply |
| LED Indicator | 1 × System LED indicator |
| Buttons | 1 × Reset button |
| Dimensions (W × D × H) | 230 mm x 230 mm x 49.5 mm (Without Mounting Bracket) |
| Weight | ≤ 1.80 kg (Without Mounting Bracket) |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| Installation | Ceiling-Mountable |
| Mounting Bracket Dimensions (W × D × H) | 120 mm x 120 mm x 8.7 mm |
| Mounting Hole Pattern | 53 mm x 53 mm |
| Mounting Hole Diameter | 6.5 mm |
| Power Supplies | IEEE 802.3bt PoE DC 48V/1A |
| Power Consumption | ≤ 40W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% Noncondensing |
- Bảo hành: 3 năm.
