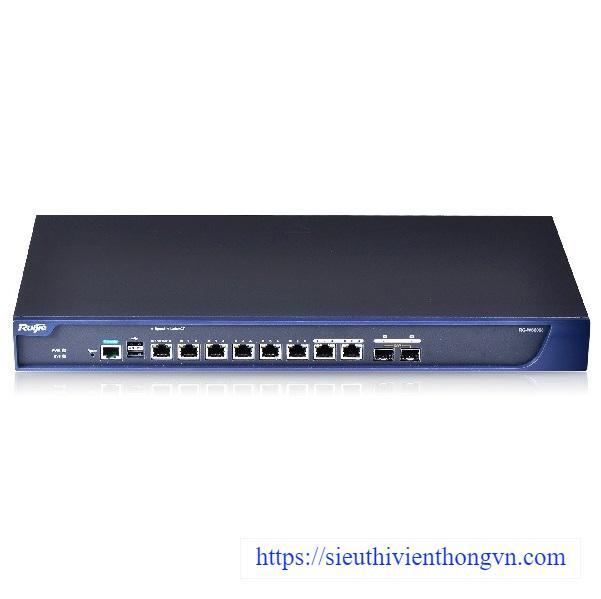

Wireless Access Controller RUIJIE RG-WS6008
- Thiết bị điều khiển WIFI thế hệ mới.
- Hỗ trợ 6 cổng 1000BASE-T.
- Hỗ trợ 2 cổng 1000BASE-T/1000BASE-X combo.
- Hỗ trợ 1 cổng Console Port.
- Hỗ trợ 1 cổng USB ports.
- Tích hợp sẵn license cho 32 Access Point wifi (Tối đa mở rộng lên đến 224 APs hoặc 448 wall APs).
- Hỗ trợ tối đa: 6.400 users.
- Hỗ trợ 4,094 VLAN.
- LAN Protocols: ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s.
- 802.11 LAN Protocols: 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac.
- Các chứng nhận: GB9254, EN301 489, GB4943, EN/IEC 60950-1.
Đặc tính kỹ thuật
| Model | G-WS6008 |
| Interfaces | |
| Service Ports | 6x 1000BASE-T ports 2x 1000BASE-T/1000BASE-X ports (combo) |
| Console Ports | 1x Console Port |
| USB Ports | 2x USB ports |
| Performance | |
| Default Number of Manageable APs | 32 |
| Maximum Number of Manageable APs | 224 APs or 448 wall APs (with license upgrade) |
| Maximum Number of Configurable APs | 2,048 |
| Maximum Number of Clients | 6,400 |
| 802.11 Performance | 8Gbps |
| VLAN | 4,094 |
| Maximum Number of Clients Supported by the Built-in Portal | 1,500 |
| ACL | 64K |
| Number of Wireless Users | 6,400 |
| MAC Address Table | 16K |
| Local Authentication | 300 wireless clients |
| ARP Table | 12K |
| IPv6 Neighbor Table | 10K |
| Inter-AC Roaming Switch Time | ≤50ms |
| Power | |
| Power Supply | -Fixed power supply 100VAC to 240VAC, 50Hz to 60Hz |
| Power Consumption | <40W |
| LAN | |
| 802.1Q VLAN | Support |
| ACL | Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL |
| Bandwidth control | Support |
| WLAN | |
| LAN Protocols | ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s |
| 802.11 LAN Protocols | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac |
| Pre-AX | Supported |
| CorrectLink | Supported |
| AirReorder | Supported |
| CAPWAP | Layer 2/Layer 3 network topology between an AP and AC Network Address Translation (NAT) traversal |
| Roaming | Intra-AC roaming, Inter-AC roaming |
| Forwarding | Local forwarding, Centralized forwarding |
| Wireless QoS | AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing |
| User Isolation | AC-based user isolation AP-based user isolation WLAN-based user isolation |
| Reliability | Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade |
| STA Management | AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold |
| STA RSSI Threshold | 0 to 100 |
| STA Idle Timeout | 60 to 86,400 seconds |
| STA Average Data Rate Threshold | 8 to 819,200 with the accuracy of 8Kbps |
| Adjusting Transmit Power of Beacon and Probe Response | Support |
| Offline Syslog | Support |
| Security | |
| IPv4/v6 Security | Web authentication, 802.1x authentication (EAP-PEAP, EAP-SIM, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, EAP-FAST, EAP-AKA), MAC address authentication |
| PPSK | Supported |
| Virtual AP | Supported |
| Virtual AC | Supported |
| 802.11 Security and Encryption | Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing |
| AAA | IEEE 802.1X |
| CPP | Support |
| NFPP | Support |
| WIDS/WIPS | Support |
| Internet Protocols | |
| IPv4 Protocols | Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Client |
| IPv6 Protocols | DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel Manual configuration address, automatic local address |
| IPv4 Routing | Static routing, OSPF |
| IPv4 Routing Table Capacity | 8K |
| IPv4 Static Routing Table Capacity | 1K |
| IPv6 Routing | Static routing |
| IPv6 Routing Table Capacity | 1K |
| IPv6 Static Routing Table Capacity | 1K |
| Management and Maintenance | |
| Network Management | SNMP v1/v2c/v3, Web management, Syslog |
| Network Management Platform | Web management (Smart-web), RG-SNC management, Heat Map diagram |
| WIS Integration | Supported |
| User Access Management | Login via console port Login via Telnet/SSH/FTP |
| Physical Specification & Others | |
| Lock | Support |
| LED Indicators | Status, Link/ACT |
| Dimensions (W x D x H) (mm) | 440 × 200 × 43.6 |
| Rack Height | 1RU |
| Weight | 2kg |
| Environmental Specifications | |
| Temperature | Operating Temperature: 0ºC to 45ºC Storage Temperature: -40ºC to 70ºC |
| Humidity | Operating Humidity: 10% to 90%RH (non-condensing) Storage Humidity: 5% to 95%RH (non-condensing) |
| Operating Altitude | 0-3000m |
| Certification | |
| EMC Standard | GB9254 EN301 489 |
| Safety Standard | GB4943 EN/IEC 60950-1 |
- Bảo hành: 3 năm.
