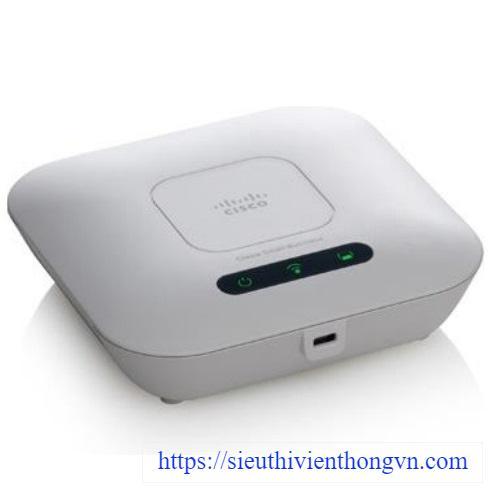

Wireless Access Point Cisco WAP121-E-K9-G5
- Cisco WAP121 Wireless-N Access Point with Single Point Setup.
- Single Radio 802.11n Access Point w/PoE (EU).
- Provides affordable high-bandwidth 802.11n wireless connectivity for demanding applications
- Easy to set up and manage by using the configuration wizard.
- Single Point Setup simplifies the deployment of multiple wireless access points.
- Safeguards business information with enhanced security, including advanced encryption, highly secure authentication, and rogue access point detection.
- Attractive design with internal antennas offers flexible installation options.
- Can connect to a Power over Ethernet (PoE) switch or injector, simplifying installation and eliminating the need for expensive additional wiring.
Specifications
| Specifications | Description |
| Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
| Ports | LAN Fast Ethernet auto sensing, DC jack |
| Switch | Power button (on/off) |
| Buttons | Power (on/off) push button, Reset button |
| Cabling type | Category 5e or better |
| Antennas | Internal antennas optimized for wall, ceiling, or desktop placement |
| LEDs | Power, WLAN, LAN |
| Operating system | Linux |
| Physical Interfaces | |
| Ports | 10BASE-T/100BASE-TX Ethernet, 12V DC power with support for 802.3af PoE |
| Power supply | External 12V 0.5A DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af PoE |
| Buttons | Power (on/off) push button; Reset button |
| Lock slot | Slot for Kensington lock |
| LED | Power, Wireless, Ethernet |
| Physical Specifications | |
| Physical dimensions (W x D x H) | 4.89 x 4.89 1.38 in. (124.17 x 124.17 x 35 mm) |
| Weight | 0.37 lb or 168 g |
| PoE | |
| PoE | 802.3af |
| Peak PoE power | 6W |
| Network Capabilities | |
| VLAN support | Yes |
| Number of VLANs | 1 management VLAN plus 4 VLANs for Service Set ID (SSID) |
| Multiple SSIDs | 4 |
| 802.1X supplicant | Yes |
| SSID to VLAN mapping | Yes |
| Auto channel selection | Yes |
| Spanning tree | Yes |
| Load balancing | Yes |
| IPv6 | Yes IPv6 host support IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc. |
| Layer 2 | 802.1Q-based VLANS, 4 active VLANS plus 1 management VLAN |
| Security | |
| WPA/WPA2/WEP | Yes, including Enterprise authentication |
| Access control | Yes, management access control list (ACL) plus MAC ACL |
| Secure management | HTTPS |
| Wi-Fi Protected Setup (WPS) | Yes (soft WPS, no hardware push button) |
| SSID broadcast | Yes |
| Rogue access point detection | Yes |
| Mounting and Physical Security | |
| Multiple mounting options | Desktop installation; mounting bracket included for easy ceiling or wall mounting |
| Physical security lock | Kensington lock slot |
| Quality of Service | |
| QoS | Wi-Fi Multimedia & Traffic Specification (WMM TSPEC) |
| Performance | |
| Wireless throughput | Up to 300 Mbps data rate (real-world throughput will vary) |
| Recommended user support | Up to 16 connected users, or 10 active users |
| Configuration | |
| Web user interface | Built-in web user interface for easy browser-based configuration (HTTP/HTTPS) |
| Multi-Access Point Management | |
| Single Point Setup | Yes |
| Maximum access points per cluster | 4 |
| Active clients per cluster | 40 |
| Management | |
| Management protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour |
| Remote management | Yes |
| Event logging | Local, remote syslog, email alerts |
| Network diagnostics | Logging and packet capture |
| Web firmware upgrade | Firmware upgradable through web browser, imported/exported configuration file |
| Dynamic Host Configuration Protocol (DHCP) | DHCP client |
| IPv6 host | Yes |
| Wireless | |
| Frequency | Single-band 2.4 GHz |
| Radio and modulation type | Single radio, orthogonal frequency division multiplexing (OFDM) |
| WLAN | 802.11n |
| Operating channels | 1 to 13 (depending on country) Channels 1 through 11 (FCC) Channels 1 through 13 (ETSI) |
| Wireless isolation | Wireless isolation between clients |
| Internal antennas | Internal fixed PIFA antennas |
| Antenna gain in dBi | 2 dBi each antenna |
| Transmitted output power | 802.11b @ 11 Mbps: 17 dBm 802.11g @ 54 Mbps: 13 dBm 802.11n @ HT20HT40, MCS15: 13 dBm |
- Bảo hành: 12 tháng.
