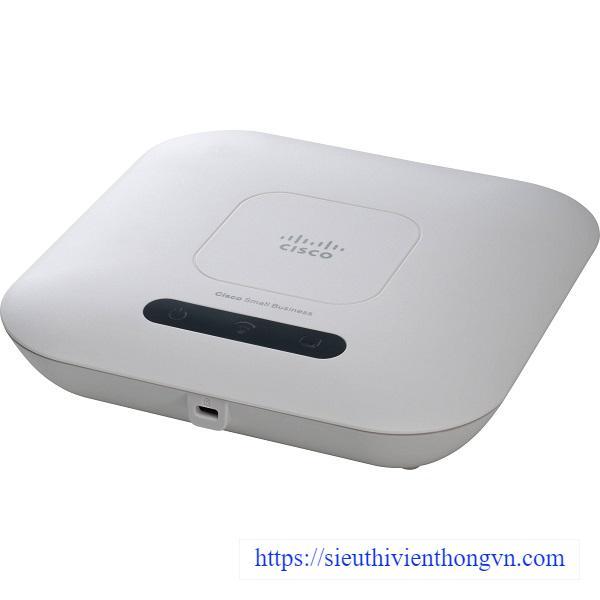

Wireless Access Point Cisco WAP321-E-K9
- Cisco WAP321 Wireless-N Selectable-Band Access Point with Single Point Setup.
- Dual-Band Single Radio Access Point w/PoE (ETSI).
- Provides selectable-band high-bandwidth 802.11n wireless connectivity for maximum performance.
- Supports high-speed connections with Gigabit Ethernet LAN interface for demanding applications.
- Single Point Setup simplifies the deployment of multiple wireless access points.
- Bridges wired LANs together wirelessly to reduce cabling and installation costs.
- Easy to set up and manage by using the configuration wizard.
- Safeguards business information with enhanced security, including advanced encryption, secure authentication, and rogue access point detection.
Specifications
| Specifications | Description |
| Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
| Ports | Ethernet, Power |
| Switch | Power button (on/off) |
| Buttons | Reset |
| Cabling type | Category 5e or better |
| LEDs | Power, Wireless, LAN |
| Operating system | Linux |
| Physical Interfaces | |
| Ports | Gigabit Ethernet, 12V DC power with support for 802.3af PoE |
| Buttons | Power (on/off) push button; Reset button |
| Lock slot | Slot for Kensington lock |
| LED | Power, Wireless, Ethernet |
| Physical Specifications | |
| Physical dimensions (W x D x H) | 6.66 x 6.67 x 1.38 in. (169.08 x 169.42 x 35 mm) |
| Weight | 0.606 lb or 275g |
| PoE | |
| PoE | 802.3af |
| Peak PoE power | 10.6W |
| Network Capabilities | |
| Network protocols | IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), RADIUS, syslog, HTTP/HTTPS, Simple Network Management Protocol (SNMP) |
| VLAN support | Yes |
| Number of VLANs | 1 management VLAN plus 8 VLANs for SSID |
| Multiple SSIDs | 8 |
| 802.1X supplicant | Yes |
| SSID to VLAN mapping | Yes |
| Auto channel selection | Yes |
| Spanning tree | Yes |
| Load balancing | Yes |
| IPv6 | Yes IPv6 host support IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc. |
| Layer 2 | 802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN |
| Security | |
| WEP/WPA/WPA2 | Yes, including Enterprise authentication |
| Access control | Yes, management access control list (ACL) plus MAC ACL |
| Secure management | HTTPS |
| Wi-Fi Protected Setup (WPS) | Yes (soft WPS, no hardware push button) |
| SSID broadcast | Yes |
| Rogue access point detection | Yes |
| Performance | |
| Wireless throughput | Data rate =300 Mbps; actual client throughput will vary |
| Recommended user support | Up to 32 connective users, 20 active users |
| Multi-Access Point Management | |
| Single Point Setup | Yes |
| Maximum access points per cluster | 8 |
| Active clients per cluster | 80 |
| Wireless | |
| Frequency | Selectable-band 2.4 GHz or 5 GHz (not concurrent) |
| Radio and modulation type | Single radio, orthogonal frequency division multiplexing (OFDM) |
| WLAN | 802.11n |
| Operating channels | 1 to 13 (depending on country) |
| Wireless isolation | Wireless isolation between clients |
| Internal antennas | Internal fixed PIFA antenna |
| Antenna gain in dBi | 2 dBi each antenna |
| Environmental | |
| Power | 12V 1A DC input, and IEEE 802.3af compliant PoE |
| Certifications | FCC class B, CE, IC, Wi-Fi |
| Operating temperature | 0° to 40°C (32° to 104°F) |
| Storage temperature | –20° to 70°C (–4° to 158°F) |
| Operating humidity | 10% to 85% noncondensing |
| Storage humidity | 5% to 90% noncondensing |
| Mean time between failures (MTBF) | 492281 hours |
- Bảo hành: 12 tháng.
