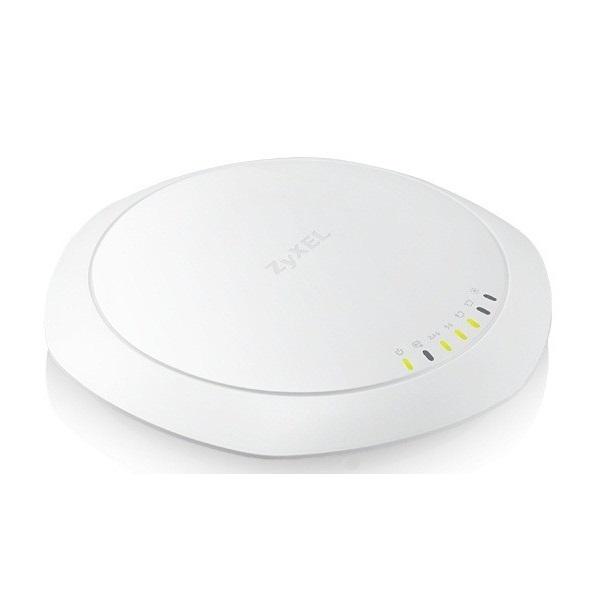

Wireless Access Point Dual Optimized ZyXEL WAC6103D-I
- The WAC6103D-I is a high-performance 802.11ac three-stream access point offering combined data transfer rates up to 1.75Gbps with a dual-optimized antenna.
- Designed with dual-optimized antenna, the WAC6103D-I provides switchable signal patterns to reduce inter-floor interference. In addition, advanced Wi-Fi features such as load balancing and smart-client steering ensure a smooth, consistent, and uninterrupted wireless access experience for all users.
Specifications
| Model | WAC6103D-I |
| Product name | 802.11ac Dual Radio Dual-optimized Antenna 3x3 Access Point |
| RF | |
| Wireless frequency | 2.4 GHz (IEEE 802.11 b/g/n) |
| 5 GHz (IEEE 802.11 a/n/ac) | |
| 802.11n/ac premium features | • 3x3 Multiple-Input Multiple-Output (MIMO) with three spatial streams • Maximal Ratio Combining (MRC) • 20-, 40- and 80-MHz channels • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) • Cyclic Delay diversity (CSD) support • Maximum Likelihood Demodulation (MLD) support • Low Density Parity Check (LDPC) support |
| Antenna system | Dual-optimized internal antenna |
| Antenna gain | Ceiling: 2.4 GHz 3 dBi; 5 GHz 4 dBi |
| Wall: 2.4 GHz 4 dBi; 5 GHz 5 dBi | |
| Interfaces | |
| LAN ports | 2 x 10/100/1000M switch ports |
| Console port | 4-Pin serial |
| PoE | Yes |
| PoE power draw | 12.48 W (802.3at PoE) |
| WLAN | |
| WLAN maximum throughput | Up to 900 Mbps |
| Network | Support IPv6, VLANs, DHCP Client |
| Number of SSID | 16 |
| Standard Conpliance | |
| Ethernet | IEEE 802.3 IEEE 802.3u IEEE 802.11ab IEEE 802.3au IEEE 802.3az IEEE 802.3at |
| General | |
| Storage Temperature | -40°C to 70°C |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 203.9 x 191.7 x 34.7 mm |
| Weight | 445g |
- Xuất xứ tại Trung Quốc.
- Bảo hành: 24 tháng.
