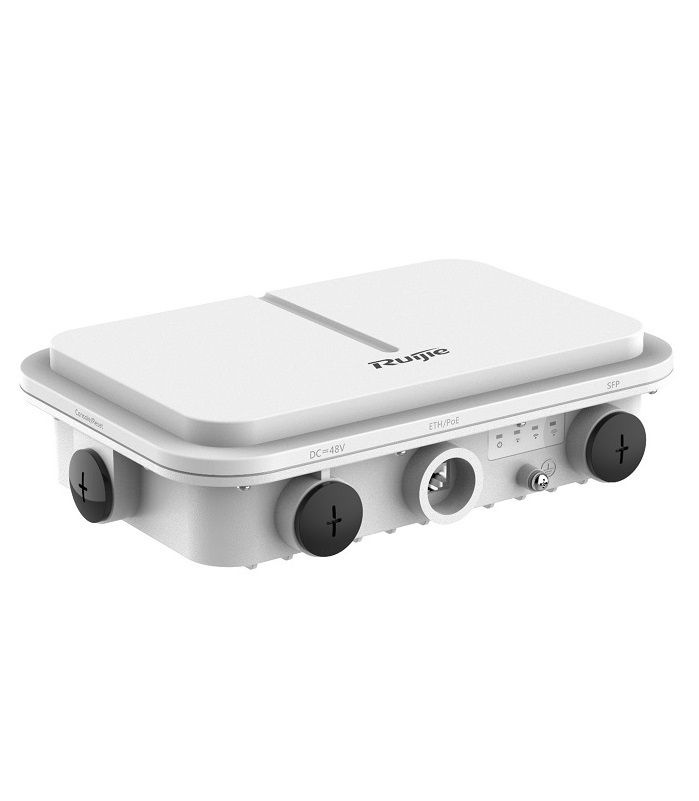

Wireless Access Point RUIJIE RG-AP680(CD)
- Ruijie Wi-Fi 6 (802.11ax) outdoor wireless access point.
- Dual-band dual-radio, up to 575Mbps@2.4G, 1200Mbps@5G and 1775Mbps per AP.
- 4 spatial streams.
- Built-in directional antenna.
- Support 802.11a/b/g/n/ac and 802.11ax, FAT/FIT mode.
- 1 SFP port and 1 10/100/1000M port.
- PoE or local power supply, bundled with Ruijie Cloud Service lifetime license (Installation Mount-Kit included, but PoE adaptor sold separately).
Specifications
| Model | RG-AP680(CD) | |
| Radio | Dual-radio dual-band Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2x2 MIMO | |
| Protocol | Concurrent 802.11ax and 802.11a/b/g/n/ac BLE 5.0 | |
| Operating Bands | 802.11b/g/n/ac/ax: 2.4G ~ 2.4835GHz 802.11a/n/ac/ax: 5G: 5.150~5.350GHz, 5.725~5.850GHz | |
| Antenna | Built-in directional antenna | |
| Antenna Loba Orientation | Internal Directional: 60 degrees total | |
| Antenna Gain | 9dBi | |
| Spatial Streams | 4 spatial streams, MU-MIMO | |
| Max Throughput | Up to 0.575Gbps@2.4G Up to 1.2Gbps@5G Up to 2.4Gbps per AP 2.4G+5G is recommended with 1.775Gbps access rate | |
| Maximum Transmit Power | 28dBm | |
| Adjustable Power | 1dBm | |
| Dimensions | 251mm × 168mm × 64mm (without mounting bracket) | |
| Weight | <1.5kg | |
| Service Ports | 1 10/100/1000Base-T Ethernet uplink port (PoE) 1 SFP port | |
| Management Port | 1 console port | |
| Bluetooth | Support switching between Bluetooth serial port and iBeacon | |
| Power Supply | Support PoE (802.3af / 802.3at) Support 44 ~ 57V DC power supply | |
| Power Consumption | <12.95W | |
| Operating Environment | Operating Temperature: -40~65℃ Storage Temperature: -40~85℃ Operating Humidity: 0% to 100% (non-condensing) Storage Humidity: 0% to 100% (non-condensing) | |
| Installation Mode | Wall/pole-mount installation | |
| IP Rating | IP68 | |
| MTBF | 250,000 hours | |
| Software | ||
| WLAN | Maximum clients per AP | 1024 |
| SSID capacity | Up to 32 | |
| SSID hiding | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| Smart device recognition | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based speed control | |
| Security | PSK and web authentication | Support |
| Data encryption | WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64 / 128-bit) | |
| WeChat authentication | Support | |
| QR code authentication | Support | |
| SMS authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| Routing | IPv4 address | Static IP address or DHCP |
| IPv6 address | IPv6 terminal access authentication, ICMPv6 | |
| Management and Maintenance | Supported wireless LAN controllers | Ruijie WS Series Wireless Controller Ruijie MACC-Base Software Controller Ruijie Cloud (Public Cloud) |
| Management protocol | Telnet, SSH, TFTP, Web | |
| Wireless Intelligent AI Optimization Service (WIS) | Support | |
| SNMP | SNMPV1,V2c,V3 | |
| Syslog / Debug | Support | |
| FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management | |
- Bảo hành: 3 năm.
