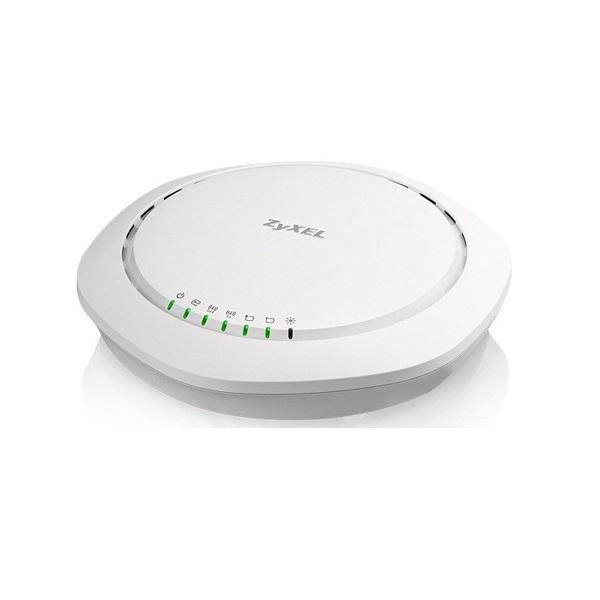

Wireless Access Point Smart Antenna ZyXEL WAC6503D-S
- 802.11ac Dual Radio Smart Antenna 3x3 Access Point.
- ZyXEL smart antenna provides enhanced performance anywhere.
- Advanced IEEE 802.11ac delivers up to 1.75 Gb/s combined data rates.
- Industry-leading receive sensitivity as low as -102 dBm.
- APFlex, DCS and tool-less bracket design streamline deployment.
- ZyXEL One Network is supported.
Specifications
| Model | WAC6503D-S |
| Networking | |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Throughput: 900 Mbps |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Features | 3T3R MIMO technology, Cyclic Delay Diversity (CDD), RADIUS support, VLAN support, Wi-Fi Multimedia (WMM) support, ZyXEL One Network (ZON), firewall protection, manageable, plenum-rated, rogue access point detection, security lock slot (cable lock sold separately), DHCP client, DiffServ support, IPv6 support, Low Density Parity Check (LDPC), MAC address filtering, Maximum Likelihood Demodulation (MLD), Maximum Ratio Combining (MRC), Quality of Service (QoS) |
| Compliant Standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.3u, Wi-Fi CERTIFIED, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Wireless Protocol | 802.11a/b/g/n/ac |
| Remote Management Protocol | CLI, SNMP 1, SNMP 2c, SNMP 3 |
| Data Transfer Rate | 1300 Mbps |
| Number of SSID | 16 |
| Antenna | |
| Antenna Qty | 6 |
| Gain Level | 6 dBi |
| Antenna Form Factor | internal |
| Interfaces | |
| Ports | 2 x 1000Base-T (PoE+) - RJ-45 |
| 1 x console - RJ-45 | |
| General | |
| Power Over Ethernet (PoE) | PoE+ |
| Power Consumption Operational | 17.04W |
| Dimensions | 236 x 227 x 62mm |
| Weight | 982g |
- Xuất xứ tại Trung Quốc.
- Bảo hành: 24 tháng.
