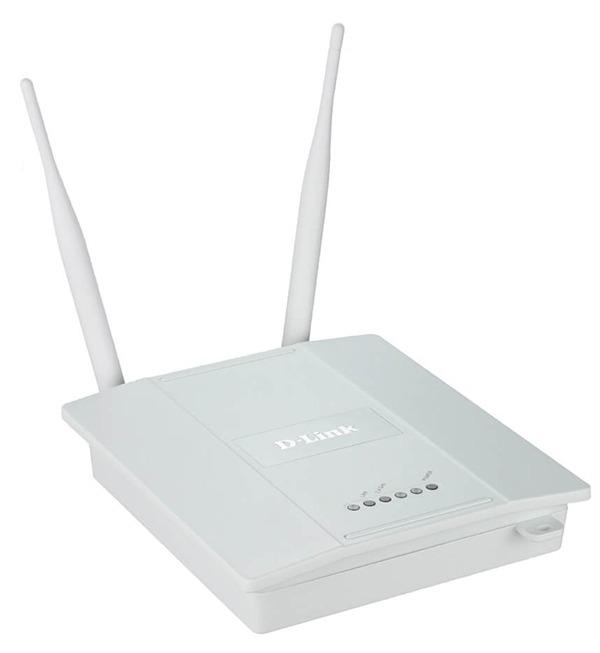

Wireless-N Gigabit PoE Access Point with Plenum-rated Chassis D-Link DAP-2360/EAU
-The DAP-2360/EAU is an 802.11n Plenum Rated PoE Access Point ideal for any network administrator to create or expand the capacity of their wireless network. At transfer rates of up to 300Mbps in 2.4GHz users are able to connect with legacy 802.11b/g adaptors as well as the latest 802.11n adaptors to enjoy faster downloads and instant communication.
Versatile Access Point
-The DAP-2360/EAU allows network administrators to deploy a highly manageable and extremely robust 802.11n wireless network.
-The included antennas are detachable and provide optimal wireless coverage in the 2.4GHz (802.11g and 802.11n) band using a high power single radio design to reduce dead spots and increase capacity.
-Enclosed in a white plenum-rated metal chassis, the DAP-2360/EAU color allows the access point to easily blend into ceilings or walls and adheres to strict fire codes for placement in air passageways. For advanced installations, this high-speed Access Point has integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device inareas where power outlets are not readily available.
Enhanced Performance
-The DAP-2360/EAU delivers reliable wireless performance with maximum wireless signal rates of up to 300Mbps2 in the 2.4GHz wireless band.
-This coupled with support for Wi-Fi Multimedia™ (WMM) Quality of Service features, makes it an ideal access point for audio, video, and voice applications. Additionally, the DAP-2360/EAU supports load balancing features to ensure maximum performance by limiting the maximum number of users per Access Point.
Security
-To help maintain a secure wireless network, the DAP-2360/EAU provides the latest in wireless security technologies by supporting both Personal and Enterprise versions of WPA and WPA2 (802.11i) with support for RADIUS server backend. To further protect your wireless network, MAC Address Filtering, Wireless LAN segmentation, Disable SSID Broadcast, Rogue AP Detection, and Wireless Broadcast Scheduling are also included.
-The DAP-2360/EAU includes support for up to 8 VLANs for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-toclient communication.
Multiple Operation Modes
-To maximize total return on investment, the DAP-2360/EAU can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS) with Access Point, WDS/Bridge (No AP Broadcasting) and Wireless Client.
-With WDS support, network administrators can set up multiple DAP-2360/EAU throughout a facility and configure them to bridge with one another while also providing network access to individual clients.
-Also included are advanced features such as Load Balancing, which optimizes high network traffic volume, and redundancy for fail-safe wireless connectivity.
-Additionally, the DAP-2360/EAU offers Spanning Tree Protocol support for greater efficiency and to avoid broadcast storms when used in WDS mode.
Network Management
-Network administrators have multiple options for managing the DAP-2360/EAU including Web (HTTP), Secure Sockets Later (SSL, which provides for a secure connection to the Internet), Secure Shell (SSH, which provides for a secure channel between local and remote computers), and Telnet (bi-directional, eight-bit byte oriented communications facility).
-For advanced network management, administrators can use the D-Link AP Manager II or D-View management module to configure and manage multiple access points from a single location. In addition to a streamlined management process, the AP Manager II or D-View software provides network administrators with the means of verifying and conducting regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.
-With 2.4GHz band functionality, PoE support, a plenum-rated chassis, extensive manageability, versatile operation modes, and solid security enhancements, the D-Link AirPremier N PoE Access Point (DAP-2360) provides SMB environments with a business-class solution for deploying a wireless network in the workplace.
Technical Specifications
| Standards | IEEE Draft 2.0 802.11n |
| IEEE 802.11a | |
| IEEE 802.11g | |
| IEEE 802.3ab | |
| IEEE 802.3af | |
| IEEE 802.3u | |
| IEEE 802.3 | |
| Network Management | Telnet - Secure (SSH) Telnet |
| Web Browser interface | |
| HTTP - Secure HTTP (HTTPS) | |
| SNMP Support | |
| D-View Module - Private MIB | |
| AP Manager II | |
| AP Array | |
| Security | WPA – Personal |
| WPA– Enterprise | |
| WPA2 – Personal | |
| WPA2 – Enterprise | |
| 64/128-bit WEP | |
| SSID Broadcast Disable | |
| MAC Address Access Control | |
| Rogue AP Detection | |
| VLAN/SSID Support | 802.1q/Multiple SSID support up to 8 |
| Quality of Service (QoS) | 4 Priority Queues |
| WMM Wireless Priority | |
| Wireless Frequency Range | 2.4GHz to 2.4835GHz |
| Operating Modes | Access Point (AP) |
| WDS with AP | |
| WDS/Bridge (No AP Broadcast) | |
| Wireless Client | |
| Dipole Antenna Gain | 5 dBi @ 2.4 GHz |
| Maximum Transmit Output Power | 26 dBm @ 2.4 GHz Dual Chain |
| Maximum Effective Isotropic Radiated Power (EIRP) | 25.7dBm @ 2.4 GHz |
| 26.7dBm @ 5 GHz | |
| LEDs | Power |
| LAN | |
| 2.4GHz | |
| Maximum Power Consumption | 9 Watts with PoE |
| 8 Watts without PoE | |
| Operating Voltage | 48VDC +/- 10% for PoE or 5V/2.5A |
| Temperature | Operating: 32 ºF to 104ºF (0ºC to 40ºC) |
| Storing: -4ºF to 149ºF (-20ºC to 65ºC) | |
| Humidity | Operating: 10%~90% (non-condensing) |
| Storing: 5%~95% (non-condensing) | |
| Certification | FCC Class B |
| IC | |
| UL 2043 | |
| WiFi® | |
| Dimensions (W x H x D) | 166 x 188x 37mm |
| Weight | 768g |
-Bảo hành 24 tháng.
