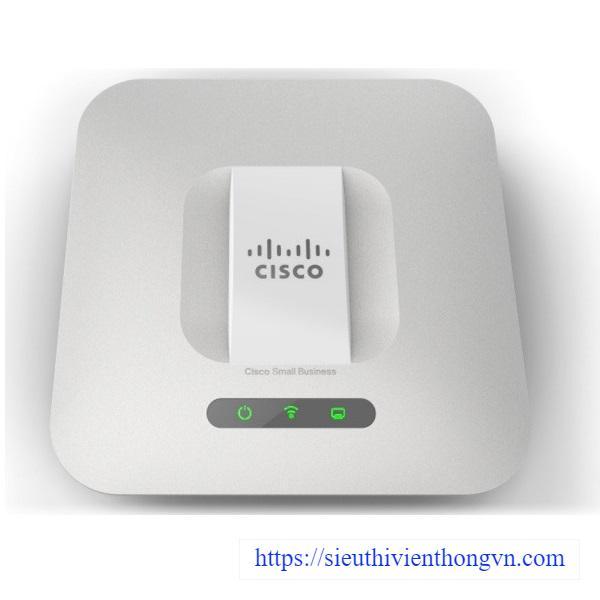

Wireless-N Access Points Cisco WAP561-E-K9
- Dual Radio 450Mbps Access Point with PoE (ETSI) 802.11n.
- Selectable or concurrent dual-band radios support up to 450 Mbps per radio to maximize capacity and coverage.
- Single Point Setup, a controllerless technology, simplifies the deployment and management of multiple access points – without requiring additional hardware.
- The Gigabit Ethernet LAN interface enables a high-speed uplink to the wired network.
- Robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue access point detection, helps protect sensitive business information.
- Captive portal support enables highly secure, customized guest access with multiple rights and roles.
- SmartSignal Antenna increases the wireless coverage area by automatically optimizing the antenna pattern.
- Simple installation and intuitive web-based configuration and wizard enable fast, simple deployment and setup in minutes.
- Support for PoE enables easy installation without expensive additional wiring.
- Sleek design with 10 antennas on the WAP561, with a versatile mounting kit that enables installation on a ceiling or wall.
- Intelligent QoS prioritizes network traffic to help keep critical network applications running at top performance.
- Power-saving sleep mode and port control features help maximize energy efficiency.
- Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
- Support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades.
- Limited lifetime hardware warranty provides peace of mind.
Specifications
| Specifications | Description |
| Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
| Ports | LAN Gigabit Ethernet auto sensing |
| Cabling type | Category 5e or better |
| Antennas | Internal antennas optimized for installation on a wall or ceiling |
| LED indicators | Power, WLAN, LAN |
| Operating system | Linux |
| Physical Interfaces | |
| Ports | 10/100/1000 Ethernet, with support for 802.3af PoE |
| Buttons | Reset button |
| Lock slot | Slot for Kensington lock |
| LEDs | Power, Wireless, Ethernet |
| Physical Specifications | |
| Physical dimensions (W x D x H) | 9.05 x 9.05 x .98 in. (230 x 230 x 25 mm) |
| Weight | 1.51 lb or 685 g |
| Network Capabilities | |
| VLAN support | Yes |
| Number of VLANs | 1 management VLAN plus 16 VLANs for SSIDs |
| 802.1X supplicant | Yes |
| SSID-to-VLAN mapping | Yes |
| Auto channel selection | Yes |
| Spanning tree | Yes |
| Load balancing | Yes |
| IPv6 | Yes + IPv6 host support + IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc. |
| Layer 2 | 802.1Q-based VLANS, 16 active VLANS plus 1 management VLAN |
| Security | |
| WPA/WPA2 | Yes, including Enterprise authentication |
| Access control | Yes, management access control list (ACL) plus MAC ACL |
| Secure management | HTTPS |
| Wi-Fi Protected Setup (WPS) | Yes (soft WPS, no hardware push button) |
| SSID broadcast | Yes |
| Rogue access point detection | Yes |
| Mounting and Physical Security | |
| Multiple mounting options | Mounting bracket included for easy ceiling or wall mounting |
| Physical security lock | Kensington lock slot |
| Quality of Service | |
| Quality of service (QoS) | Wi-Fi Multimedia and Traffic Specification (WMM TSPEC) |
| Performance | |
| Wireless throughput | Up to 450 Mbps data rate (real-world throughput will vary) |
| Recommended user support | Up to 64 connective users, 30 active users per radio |
| Multiple-Access Point Management | |
| Single Point Setup | Yes |
| Number of access points per cluster | 16 |
| Active clients per cluster | 480 |
| Management | |
| Management protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour |
| Remote management | Yes |
| Event logging | Local, remote syslog, email alerts |
| Network diagnostics | Logging and packet capture |
| Web firmware upgrade | Firmware upgradable through web browser, imported/exported configuration file |
| Dynamic Host Configuration Protocol (DHCP) | DHCP client |
| IPv6 host | Yes |
| HTTP redirect | Yes |
| Wireless | |
| Frequency | Dual concurrent radios (2.4 and 5 GHz) |
| Radio and modulation type | Dual radio, orthogonal frequency division multiplexing (OFDM) |
| WLAN | 802.11b/g/n 3x3 multiple-input multiple-output (MIMO) with 3 spatial streams 20 and 40 MHz channels PHY data rate up to 450 Mbps 802.11 dynamic frequency selection (DSF), EU version only |
| Internal antennas | 10 antennas |
| Antenna gain in dBi | 5 dBi each antenna |
| Wireless distribution system (WDS) | Yes |
| Fast roaming | Yes |
| Multiple SSIDs | 16 x 2 |
| Wireless VLAN map | Yes |
| WLAN security | Yes |
| Wi-Fi Multimedia (WMM) | Yes, with unscheduled automatic power save |
| Environmental | |
| Operating temperature | 0° to 40°C (32° to 104°F) |
| Storage temperature | –20° to 70°C (–4° to 158°F) |
| Operating humidity | 10% to 85% noncondensing |
| Storage humidity | 5% to 90% noncondensing |
| System memory | 64 MB RAM 32 MB flash |
- Bảo hành: 12 tháng.
