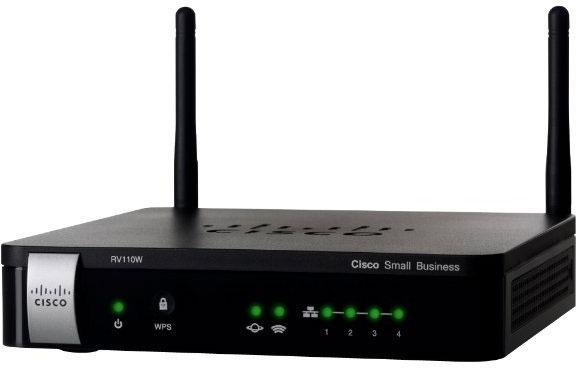

Wireless-N VPN Firewall Cisco RV110W
The Cisco ® RV110W Wireless-N VPN Firewall provides simple, affordable, highly secure, business-class connectivity to the Internet for small offices/home offices and remote workers.
The Cisco RV110W combines wired and wireless connectivity for small offices and remote workers with a high-speed, 802.11n wireless access point; a 4-port 10/100 Mbps Fast Ethernet switch; an intuitive, browser-based device manager; and support for the Cisco FindIT Network Discovery Utility, all at a very affordable price. Its combination of business-class features, support for virtual networks to enable highly secure guest access, simple installation, and top-quality user experience takes basic connectivity for small businesses with five or fewer employees to a new level.
Product Overview
The Cisco RV110W Wireless-N VPN Firewall features:
- High-speed, standards-based 802.11n wireless connectivity improves throughput and coverage, allowing employees to stay productive while away from their desks
- Integrated 4-port 10/100 switch, enabling you to connect to computers, printers, IP phones, cameras, and other devices
- Proven firewall with access rules support and advanced wireless security helps keep business assets safe
- Quality of service (QoS) support for enhanced voice, video, and data traffic
- Support for separate 'virtual' networks, enabling you to control access to sensitive information and to set up highly secure wireless guest access
- IP Security (IPsec) Site-to-Site Tunneling and Point-to-Point Tunneling Protocol (PPTP) VPN support, providing highly secure remote access connectivity for Windows and Mac OS computers
- Support for IPv6, the latest Internet Protocol technology, to help your network accommodate new technologies
- Simplified configuration through an intuitive, browser-based device manager
- Support for the Cisco FindIT Network Discovery Utility
Product Specifications
Feature | Description |
Routing | - Static routing |
- Dynamic routing | |
- Routing Information Protocol (RIP) v1 and v2 | |
- Inter-VLAN routing | |
Layer 2 | - 802.1Q-based VLANs |
- 4 active VLANs (3 to 4094 range) | |
Network | - Dynamic Host Configuration Protocol (DHCP) server |
- Point-to-Point Protocol over Ethernet (PPPoE) | |
- Point-to-Point Tunneling Protocol (PPTP) | |
- Layer 2 Tunneling Protocol (L2TP) | |
- DNS proxy | |
- DHCP relay agent | |
- IGMP Proxy and multicast forwarding | |
- Internet Group Management Protocol (IGMP) proxy and multicast forwarding | |
- Rapid Spanning Tree Protocol (RSTP) | |
- Dynamic DNS (DynDNS), TZO, 3322.org) | |
- Network Address Translation (NAT), Port Address Translation (PAT) | |
- Port management | |
- Port Mirroring | |
- Software-configurable network edge (DMZ) to any LAN IP address | |
IPv6 | - Dual-stack IPv4 and IPv6 |
- 6to4 tunneling | |
- Multicast Listener Discovery (MLD) for IPv6 (RFC 2710) | |
- Stateless address auto-configuration | |
- DHCP v6 Server for IPv6 Clients on LAN | |
- DHCP v6 client for WAN connectivity | |
- Internet Control Message Protocol (ICMP) v6 | |
- Static IPv6 Routing | |
- Dynamic IPv6 Routing with RIPng | |
- IPv6 Rapid Deployment | |
Security | - Stateful packet inspection (SPI) firewall |
- Port forwarding and triggering | |
- Firewall Access Control Lists and Content Filtering | |
- Denial-of-service (DoS) prevention | |
- MAC-based wireless access control | |
- Static URL blocking or keyword blocking | |
- Schedule-based Internet access policy | |
- HTTPS web access to the device manager | |
- Username/password complexity enforcement | |
- Self-signed SSL certificate | |
- Import and export certificate using Privacy-Enhanced Mail (PEM) format | |
VPN | - 5 IPsec client sessions using Cisco QuickVPN client |
- 5 PPTP client sessions for remote client access | |
- Triple Data Encryption Standard (3DES) VPN pass-through of PPTP, L2TP, and IPsec | |
- 1 IPSec Site-to-Site tunnel | |
Quality of service (QoS) | - 802.1p port-based priority on LAN port, application-based priority on WAN port |
- 4 queues | |
- Differentiated Services Code Pointsupport (DSCP) | |
- Class of Service (CoS) | |
- Bandwidth Management for service prioritization | |
Management | - Simple Network Management Protocol (SNMP) v3 |
- Event logging: local, syslog, email alerts | |
- Firmware upgradable through web browser | |
- Imported/exported configuration in text format | |
- Simple browser-based configuration (HTTP/HTTPS) | |
- Bonjour and Universal Plug and Play (UPnP) | |
- Network diagnostics: Ping, Traceroute, and DNS Lookup | |
Performance | - NAT throughput: 90 Mbps |
- Concurrent sessions: 5,000 | |
- VPN throughput: 5Mbps |
Wireless LAN Specifications
Feature | Description |
WLAN hardware | IEEE 802.11n standard-based access point with 802.11b/g compatibility |
Radio and modulation type: | |
- 802.11b: direct sequence spread spectrum (DSSS) | |
- 802.11g/n: orthogonal frequency division multiplexing (OFDM) | |
- 2 omnidirectional 1.8 dBi gain fixed external antennas | |
Operating channels: | |
- 11 in North America | |
- 13 in most of Europe | |
- Automatic channel selection | |
Transmit power: | |
- 802.11b: 17 dBm +/- 1.5 dBm | |
- 802.11g: 15 dBm +/- 1.5 dBm | |
- 802.11n: 12.5 dBm +/- 1.5 dBm | |
Receiver sensitivity: | |
- -87 dBm at 11 Mbps | |
- -71 dBm at 54 Mbps | |
- -68 dBm at msc15, HT20 / -66dBm at mcs15, HT40 | |
Wireless Domain Services (WDS) | - Allows wireless signals to be repeated by up to 3 compatible devices |
Wi-Fi Multimedia (WMM) | - WMM with QoS (802.11e), WMM power save (WMM-PS) |
Active WLAN clients | - Up to 32 clients |
Service Set Identifiers (SSIDs) | - Up to 4 separate wireless networks |
Wireless isolation | - Wireless isolation between clients |
WLAN security | - WPS ( Wi-Fi Protected Setup), Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA) personal and enterprise, WPA2 personal and enterprise |
System Specifications
Feature | Description |
WAN | One 10/100 Mbps Fast Ethernet WAN port |
LAN | Four 10/100 Mbps Fast Ethernet LAN ports |
WLAN | Built-in 802.11n wireless access point |
LEDs | Power, WPS, WAN, Wireless, LAN (ports 1-4) |
Switch | Power button (on/off) |
Physical dimensions and weight | - W x D x H = 5.91 in. x 5.91 in. x 1.18 in. (150 mm x 150 mm x 30 mm) |
- Weight: 0.61 lb (0.3 kg) | |
Power | 12V 1A |
Certifications | - FCC Class B |
- CE | |
- IC | |
- cUL | |
- Wi-Fi | |
Environmental operating range | - Operating temperature: 0° to 40°C (32° to 104°F) |
- Storage temperature: -20° to 70°C (-4° to 158°F) | |
- Operating humidity: 10% to 85% noncondensing | |
- Storage humidity: 5% to 90% noncondensing |
