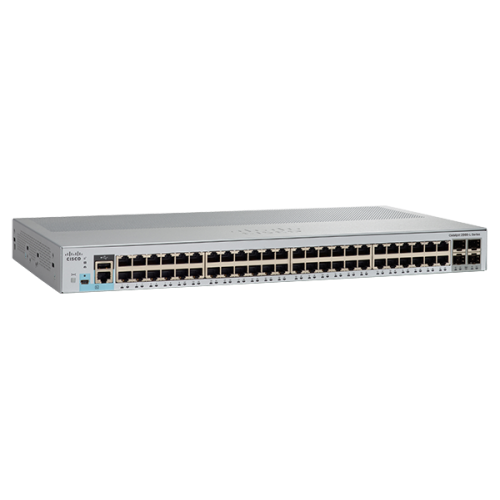

48-Port Gigabit Ethernet + 4 x Gigabit SFP Switch Cisco WS-C2960L-48TS-AP
Features
- 48 x 10/100/1000 Ethernet ports + 4 SFP Gigabit ports, LAN Lite software, Asic Pac.
- Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard.
- Basic Layer 3 features with Static routing and Routing Information Protocol (RIP).
- Fanless operation with operating temperature up to 45°C.
- Compact design with a depth of less than 11.5 inches.
- Reliability with higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty (E-LLW).
Specifications
| Model | WS-C2960L-48TS-AP |
| Ports | 48 x 10/100/1000 Ethernet 4 x SFP Gigabit 1 RJ45 port 1 USB mini-B 1 USB-A |
| CPU | ARMv7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding bandwidth | 52 Gbps |
| Switching bandwidth | 104 Gbps |
| Forwarding rate | 77.38 Mpps |
| Maximum active VLANs | 64 |
| Jumbo Ethernet frame | 10,240 bytes |
| Network Security | Comprehensive 802.1X Multidomain authentication Access control lists (ACLs) Port-based ACLs SSH, Kerberos, and SNMPv3 SPAN TACACS+ and RADIUS authentication MAC address notification Multilevel security on console access BPDU guard Spanning-Tree Root Guard (STRG) IGMP filtering Dynamic VLAN assignment |
| Layer 3 | RIP |
| Management | VLAN DHCP QoS Dynamic Trunking Protocol (DTP) Port Aggregation Protocol (PAgP) Link Aggregation Control Protocol (LACP) IGMP VLAN Trunking Protocol (VTP) Network Time Protocol (NTP) |
| Voltage | 110 to 220 VAC |
| Power Consumption | Max. 0.09 kVA |
| Fanless | Yes |
| Dimensions | 4.4 x 24 x 44.5 cm |
| Weight | 2.98 kg |
- Bảo hành: 12 tháng.
