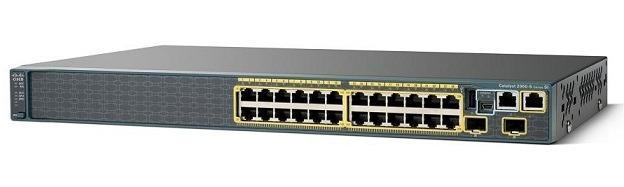

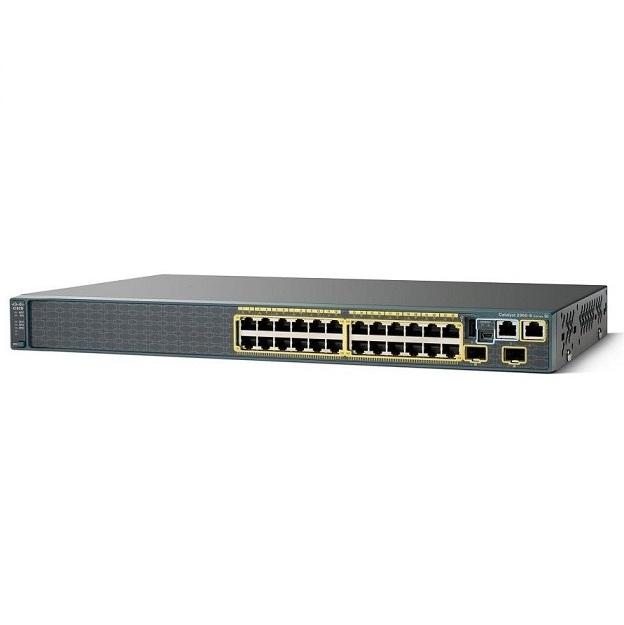

Switch CISCO Catalyst 2960 WS-C2960S-24TS-S
– The Cisco Catalyst 2960-S Series Switches WS-C2960S-24TS-S is WS-C2960S-24TS-L lited from Lan Base software to Lan Lite for more economical and easier to manage for customers of entry-level branch office or wiring closet networks. WS-C2960S-24TS-Ssimplifies the migration from nonintelligent hubs and unmanaged switches to a fully scalable and reliable network, the LAN Lite IOS software supports standard Layer 2 security, QoS, and availability while lowering the network total cost of ownership.
– The Cisco Catalyst WS-C2960S-24TS-S Ethernet Switch is the leading Layer 2 edge switch, providing improved operational excellence, highly secure business operations, improved sustainability, and an enhanced workspace experience. It is fixed-configuration access switch designed for entry-level enterprise, midmarket, and branch office networks.
Đặc tính kỹ thuật
General | |
Device Type | Switch |
Enclosure Type | Rack-mountable, 1U |
Memory | |
RAM | 128 MB |
Flash Memory | 64 MB flash |
Networking | |
Ports Qty | 24 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
Data Transfer Rate | 1 Gbps |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, FTP, TFTP, SSH-2 |
Connectivity Technology | Wired |
Communication Mode | Half-duplex, full-duplex |
Switching Protocol | Ethernet |
MAC Address Table Size | 8K entries |
Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
Features | Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast St |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
Expansion / Connectivity | |
Expansion Slots Total (Free) | 2 (2) x SFP (mini-GBIC) |
Interfaces | 24 x network, Ethernet 10Base-T/100Base-TX/1000Base-T, RJ-45 , 1 x USB, 4 pin USB Type A , 1 x USB, mini-USB Type B , 1 x management, console, RJ-45 |
Miscellaneous | |
Rack Mounting Kit | Optional |
MTBF | 335,014 hour(s) |
Encryption Algorithm | SSL |
Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, CB, EMC, MIC, RoHS, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, CS |
Power | |
Power Device | Power supply, internal |
Voltage Required | AC 120/230 V ( 50, 60 Hz ) |
Power Consumption Operational | 36 Watt |
Software / System Requirements | |
Software Included | Cisco IOS LAN Lite |
Environmental Parameters | |
Min Operating Temperature | 23 °F |
Humidity RangeOperating | 10, 95% |
Dimensions | 17.5 in x 11.8 in x 1.8 in |
Weight | 9.9 lbs |
– Bảo hành: 12 tháng
