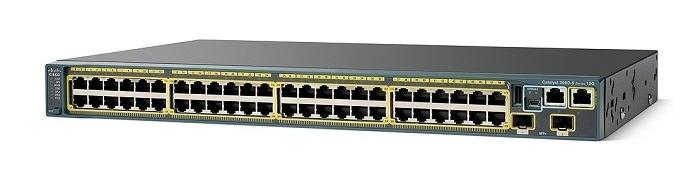

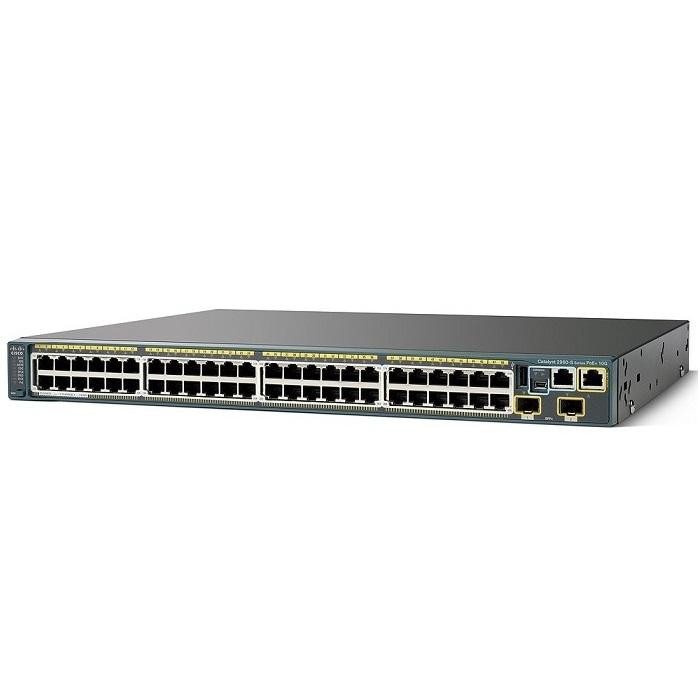

Switch CISCO Catalyst 2960 WS-C2960S-48TS-S
The Cisco Catalyst 2960-S Series Switches WS-C2960S-48TS-S is WS-C2960S-48TS-L simplified from Lan Base software to Lan Lite for more adaptation if customers’ business is entry-level branch office or wiring closet networks, distinguish with Lan Base software for a more complex business requiring. They simplify the migration from nonintelligent hubs and unmanaged switches to a fully scalable and reliable network. Deploying cost-effective wired connectivity in traditional desktop workspace environments
– 48 Gigabit Ethernet ports
– Two 1G Small Form-Factor Pluggable (SFP)
– USB interfaces for management and file transfers
– LAN Base or LAN Lite Cisco IOS Software feature set
– SmartOperations tools that simplify deployment and reduce the cost of network administration
Đặc tính kỹ thuật
Port | 48 Ethernet 10/100/1000 |
2 x SPF ports | |
Forwarding bandwidth | 50 Gbps |
Flash memory | 64 MB |
Memory DRAM | 128 MB |
Max VLANs | 64 |
VLAN IDs | 4000 |
Maximum transmission unit (MTU) | Up to 9198 bytes |
Jumbo frames | 9216 bytes |
Forwarding Rate | 74.4 mpps |
Unicast MAC addresses | 8000 |
IPv4 IGMP groups | 256 |
Operating temperature up to 5000 ft (1500 m) | -5º to 45ºC |
Operating temperature up to 10,000 ft (3000 m) | -5º to 40ºC |
Short-term exception at sea level | -5º to +55ºC |
Short-term exception up to 5,000 feet (1500 m) | -5º to +50ºC |
Short-term exception up to 10,000 feet (3000 m) | -5º to +45ºC |
Operating altitude | Up to 3000 Meters |
Storage altitude | Up to 4000 Meters |
Operating relative humidity | 10% to 95% noncondensing |
Storage relative humidity | 10% to 95% noncondensing |
Mean time between failures (MTBF) | 357,740 hours |
Standards | IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab (LLDP without MED), IEEE 802.3ad, IEEE 802.3ah (100BASE-X single- and multimode fiber only), IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports, IEEE 802.3 10BASE-T specification, IEEE 802.3u 100BASE-TX specification, IEEE 802.3ab 1000BASE-T specification, IEEE 802.3z 1000BASE-X specification |
| UL 60950-1, Second Edition CAN/CSA 22.2 No. 60950-1, Second Edition TUV/GS to EN 60950-1, Second Edition CB to IEC 60950-1 Second Edition with all country deviations CE Marking NOM (through partners and distributors) |
Safety certifications | |
Electromagnetic emissions certifications | FCC Part 15 Class A, EN 55022 Class A (CISPR22), EN 55024 (CISPR24), AS/NZS CISPR22 Class A CE, CNS13438 Class A MIC, GOST, China EMC Certifications |
Voltages | 100 to 240 VAC |
Power | 1 to 0.5 A, 50 to 60 Hz |
Dimensions (H x W x D) | 4.5 x 45 x 30 Centimeters |
Weight | 4.8 Kilograms |
– Bảo hành: 12 tháng
