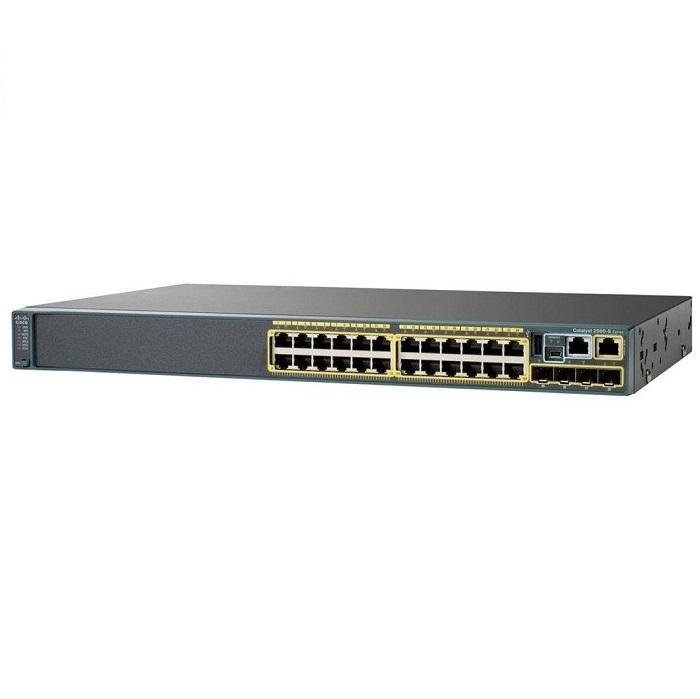

Switch CISCO Catalyst 2960 WS-C2960X-24TS-LL
- 24 Ethernet 10/100/1000 Gigabit ports and 2 x 1G SFP uplink
- Standalone mode with no FlexStack plus supporting and no NetFlow lite features
- Dual Core CPU with 256MB Memory (DRAM) and 64MB flash memory
- External RPS support redundant power
- Energy-efficient solution reduce power consumption
- LAN Lite Cisco IOS software feature set (no upgrade option)
Đặc tính kỹ thuật
Model info | WS - 2960X - 24TS - LL |
Enclosure type | Rack - mountable - 1U |
Ports | 24 x 10/100/1000 + 2 x 1G SFP |
Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
Available PoE Power | None |
Forwarding bandwidth (Gbps) | 50 Gbps |
Maximum stacking number | None |
Stack Bandwidth | None |
Forwarding Performance | 68.5Mpps |
Switching bandwidth | 100Gbps |
Maximum active VLANs | 64 |
MAC Address Table Size | 16K (default) |
CPU | APM86392 600MHz dual core |
RAM | 256 MB |
Flash Memory | 64 MB |
Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
Expansion / Connectivity |
|
Console ports | USB (Type-B), Ethernet (RJ-45) |
Stacking cable | None |
Power Redundancy | Option (PWR-RPS2300) |
Compliant Standards | IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab (LLDP), IEEE 802.3ad, IEEE 802.3af and IEEE 802.3at, IEEE 802.3ah (100BASE-X single/multimode fiber only), IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports |
Voltage range (Auto) | 110 - 240VAC |
Power Consumption Operational | 0.035KVA |
Dimensions (W x D x H) | 44.5 x 27.9 x 4.5 cm |
Weight | 3.7 kg |
– Bảo hành: 12 tháng
