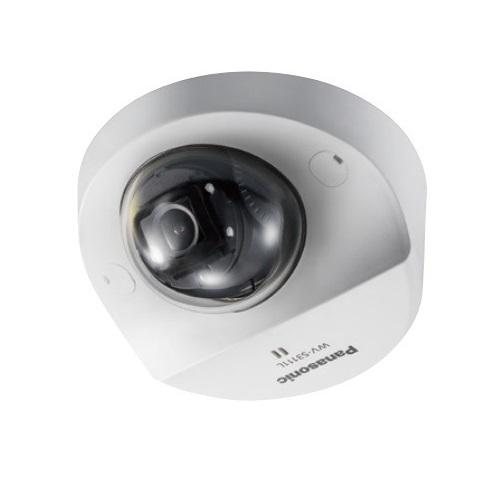

Camera IP Dome hồng ngoại 1.3 Megapixel PANASONIC WV-S3111L
- Cảm biến hình ảnh: Approx. 1/3 type CMOS image sensor.
- Độ phân giải camera ip: 1.3 Megapixel.
- Tốc độ khung hình: 1 to 60 fps.
- Độ nhạy sáng tối thiểu: Color: 0.02 lx, BW: 0.01 lx; B/W: 0.0 lux (with IR LED on).
- Tầm quan sát hồng ngoại: 15 mét.
- Chuẩn nén hình ảnh: H.265/ H.264/ JPEG (MJPEG).
- Nhiệt độ hoạt động: 0°C to +40°C.
- Nguồn điện: DC48V/80mA và PoE.
Đặc tính kỹ thuật
| Model | WV-S3111L |
| Camera | |
| Image Sensor | Approx. 1/3 type CMOS image sensor |
| Minimum Illumination | Color: 0.02 lx, BW: 0.01 lx (F2.3, Maximum shutter: Off (1/30s), AGC: 11) BW: 0 lx (F2.3, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.0013 lx, BW 0.0007 lx (F2.3, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K |
| Maximum shutter | Max. 1/10000s to Max. 16/30s |
| Intelligent Auto | On/ Off |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max.134 dB typ. (Super Dynamic: On) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back light compensation/ High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off) |
| Fog compensation | On/ Off (only when Intelligent auto/ auto contrast adjust: Off) |
| Maximum gain | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off / On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light | High/ Middle/ Low/ Off, Maximum irradiation distance: 15 m {Approx. 49 ft} |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Intelligent VMD (i-VMD | Type 4 Bundled License |
| Privacy Zone | On/ Off (up to 8 zones available) |
| Image rotation | 0°/ 90°/ 180°(Upside-down)/ 270° |
| Mirror | On/ Off |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Lens | |
| Zoom Ratio | 1 x Optical |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Focal length | 2.8 mm {1/8 inches} |
| Angular Field of View | [16 : 9 mode] Horizontal : 97° Vertical : 54° [4 : 3 mode] Horizontal : 97° Vertical : 72° |
| Maximum Aperture Ratio | 1 : 2.3 |
| Focus range | 0.5 m {19-11/16 inches} – ∞ |
| Adjusting Angle | |
| Adjusting Angle | Horizontal (PAN) angle: ±45° Vertical (TILT) angle: 0 to +90° Azimuth (YAW) angle: ±90° |
| Browser GUI | |
| Camera Control | Brightness |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264 JPEG (MJPEG) | - 1.3 Megapixel [16 : 9] (30/60 fps) 1,280 x 720/ 640 x 360/ 320 x 180 - 1.3 Megapixel [4 : 3] (30 fps) 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240 |
| H.265/H.264 | - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort - Transmission Type: Unicast/ Multicast |
| JPEG | Image Quality: 10 steps |
| Smart Coding | GOP(Group of pictures) control [When H.264 is selected] On (Mid)/ On (Low)/ Off [When H.265 is selected] On (Frame rate control)/ On (Advanced)/ On (Mid)/ On (Low)/ Off |
| Smart Facial Coding* Off/ On(AUTO VIQS)/ On(Smart Facial Coding) *Smart Facial Coding is only available with Stream(1). | |
| Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| microSDXC/microSDHC/microSD Memory Card | - H.265/ H.264 recording: Manual RE/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure - Compatible microSDXC/microSDHC/microSD Memory Card : Panasonic 2 GB, 4 GB*, 8 GB*, 32 GB*, 64 GB**model *microSDHC card, **microSDXC card |
| Mobile Terminal Compatibility | iPad, iPhone, Android terminals |
| Alarm | |
| Alarm Source | VMD alarm, Command alarm, Audio detection alarm |
| Alarm Actions | microSDXC/microSDHC/microSD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output |
| Input/Output | |
| Built-in microphone | Nondirectional electret condenser microphone |
| General | |
| Safety | UL (UL60950-1 2Ed), c-UL (CAN/CSA C22. NO.60950-1-07), CE, IEC60950-1 |
| EMC | FCC (Part15 Subpart B, ClassA, SDoC), ICES-003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48V/80 mA, Approx. 3.8 W (Class 2 device) |
| Ambient Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Dimensions | ø104 mm x 51 mm (H) {ø4-3/32 inches x 2 inches (H)} Dome radius 27 mm {1-1/16 inches} |
| Mass (approx.) | Approx. 255 g {0.56 lbs} |
| Finish | Main body: ABS resin, Sail white Dome section: Polycarbonate resin, Clear |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
