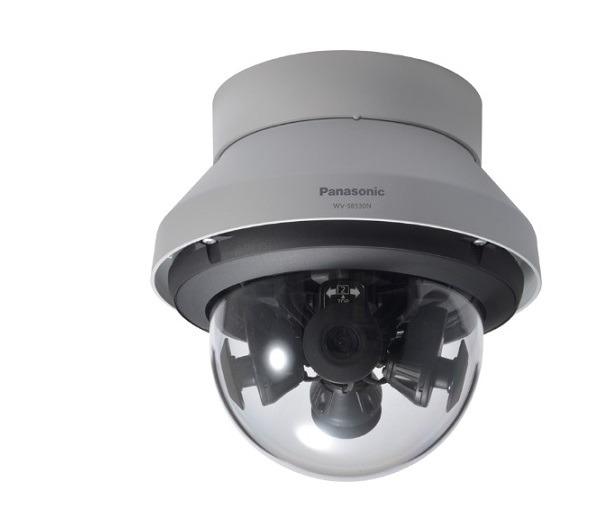

Camera IP Dome 2.0 Megapixel PANASONIC WV-S8530N
- Cảm biến hình ảnh: 1/3 type CMOS image sensor.
- Độ phân giải camera ip: 2.0 Megapixel.
- Tốc độ khung hình: 30 fps.
- Ống kính: 3.2 - 5.7 mm.
- Độ nhạy sáng tối thiểu: Color: 0.09 lx, BW: 0.04 lx.
- Chuẩn nén hình ảnh: H.265/ H.264/ JPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuấn chống va đập: IK10.
- Nguồn điện: PoE (IEEE802.3af compliant) Device: DC 48V-210 mA/Approx. 10.1W (Class 0 device).
Đặc tính kỹ thuật
| Model | WV-S8530N |
| Camera | |
| Image Sensor | 1/3 type CMOS image sensor |
| Minimum Illumination | - Color: 0.09 lx, BW: 0.04 lx (F2.2, Maximum shutter: Off (1/30s), AGC: 11) - Color: 0.006 lx, BW: 0.003 lx (F2.2, Maximum shutter: max. 16/30s, AGC: 11) |
| Intelligent Auto | On/ Off |
| Maximum shutter | Max.1/10000s to Max.16/30s |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | Max.108 dB typ. (Super Dynamic: On, level: 31) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), High light compensation (HLC), Fog compensation, Digital noise reduction |
| Color/BW (ICR) | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Privacy Zone | On / Off (up to 8 zones available) |
| Upside-down | On / Off |
| Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks |
| Adjusting angle | Camera 1, 2, 3 : Horizontal (PAN) angle : 360 ° Vertical (TILT) angle : +30 ° to + 80 ° Azimuth (YAW) angle : ±50 ° Camera 4 : Horizontal (PAN) angle : 360 ° Vertical (TILT) angle : –15 ° to + 80 ° Azimuth (YAW) angle : ±50 ° *The above is the adjustable range of a single camera. The adjustable range of each camera varies according to the positional relationship with other cameras |
| Lens | |
| Zoom Ratio | 1.8x Optical (Manual zoom/ Manual focus) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Focal length | 3.2 mm – 5.7 mm {1/8 inches - 7/32 inches} |
| Maximum Aperture Ratio | 1 : 2.2 (WIDE) – 1 : 3.1 (TELE) |
| Focus range | 1.5 m {4.92 feets} – ∞ |
| Angular Field of view | - [16 : 9] Horizontal : 53 ° (TELE) – 99 ° (WIDE) Vertical : 30 ° (TELE) – 54 ° (WIDE) - [ 4 : 3] Horizontal : 44 ° (TELE) – 81 ° (WIDE) Vertical : 33 ° (TELE) – 60 ° (WIDE) |
| Browser GUI | |
| Camera Control | Brightness, AUX On/ Off |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T/ 100Base-TX/ 1000Base-T, RJ45 connector |
| Resolution with one lens | - [16 : 9 mode] 1920 x 1080/ 1280 x 720/ 640 x 360/ 320 x 180 - [ 4 : 3 mode] 1600 x 1200/ 1280 x 960/ 640 x 480/ 320 x 240 |
| H.265/H.264 | - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort - Transmission Type: Unicast/ Multicast |
| JPEG | - Image Quality: 10 steps |
| Smart Coding | - GOP (Group of pictures) control : On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off *On (Frame rate control) and On (Advanced) are only available with H.265. - Auto VIQS : On / Off |
| Supported Protocol | - IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP (Server), SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP (Server), SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| Maximum concurrent access number | Up to 24 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card | - H.265/H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - Compatible SDXC/SDHC/SD card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad/ iPhone, AndroidTM terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output |
| Input/Output | |
| Audio Input | ø3.5 mm stereo mini jack (Audio input is monaural) - For microphone input: Recommended applicable microphone: Plug-in power type (Sensitivity of microphone: -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance: Approx. 2 k (unbalanced) Supply voltage: 4.0 V ±0.5 V - For line input: Input level : Approx. –10 dBV |
| External I/O Terminals | ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1), ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ ALARM OUT/ AUX OUT) (x1) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC 48V/210 mA/Approx. 10.1 W (Class 0 device) |
| Ambient Operating Temperature | -40 °C to +60 °C {–40 °F to +140 °F} {Power On range : –20 °C to +60 °C (–4 °F to +140 °F)} |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC62262) |
| Dimensions | When using the attachment plate only: ø230 mm x 196 mm (H) {ø9-1/16 inches x 7-23/32 inches (H)}, Dome radius 80 mm {3-5/32 inches} When using the base bracket: ø230 mm x 232 mm (H) {ø9-1/16 inches x 9-1/8 inches (H)}, Dome radius 80 mm {3-5/32 inches} |
| Mass (approx.) | When using the attachment plate only: Approx. 2.7 kg {5.95 lbs} When using the base bracket: Approx. 3.2 kg {7.05 lbs} |
| Finish | Main body: Aluminum die cast, Light gray, Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Dome cover: Polycarbonate resin (with ClearSight coating), Clear |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
