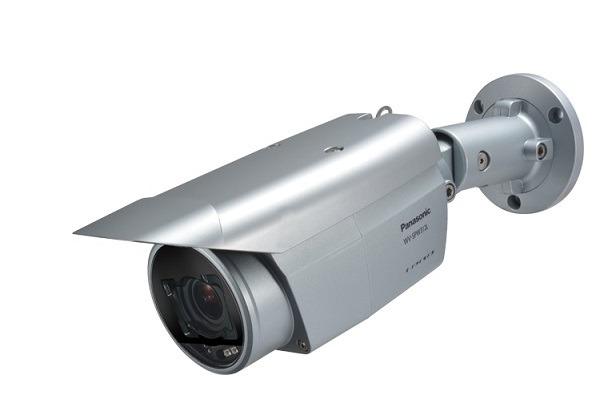

Camera IP hồng ngoại 1.3 Megapixel PANASONIC WV-SPW312L
- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
- Độ phân giải camera ip: 1.3 Megapixel.
- Tốc độ khung hình: 30 fps.
- Độ nhạy sáng tối thiểu: Color: 0.02 lx, BW: 0.06 lx; B/W: 0.0 lux (with IR LED on).
- Chuẩn nén hình ảnh: H.264/ JPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: PoE (IEEE802.3af compliant): DC48V/ 190mA/ Approx. 9.12 W (Class 0 device).
Đặc tính kỹ thuật
| Model | WV-SPW312L |
| Camera | |
| Image Sensor | Approx. 1/3 type MOS image sensor |
| Scanning Mode | Progressive scan |
| Scanning Area | 4.86 mm (H) ×3.89 mm(V) {3/16 inches (H) x 5/32 inches (V)} |
| Minimum Illumination | - Color: 0.02 lx, BW: 0.006 lx (F1.6, Maximum shutter: Max. 1/30s, Gain: On(High)) - BW: 0 lx (F1.6, Maximum shutter: Off(1/30 s), Gain: High, when the IR LED is lit) - Color: 0.0013 lx, BW: 0.0004 lx (F1.6, Maximum shutter: Max. 16/30s, Gain: On(High)) |
| IR LED Light | Off / Auto(High / Mid / Low) |
| IR LED irradiation distance | Approx. 30 m {98.43 feet} |
| White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K |
| Light Control Mode | Outdoor scene/ Indoor scene (50 Hz)/ Indoor scene (60 Hz)/ Fix shutter |
| Shutter Speed | OFF(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Wide Dynamic Range | On/ Off |
| Face wide dynamic range | On/ Off (only when Wide Dynamic Range: On) |
| Adaptive Black Stretch | On/ Off (only when Wide Dynamic Range: Off) |
| Fog compensation | On/ Off (only when Wide Dynamic Range/ Adaptive black stretch: Off) |
| High light compensation(HLC) | On/ Off (only when Wide Dynamic Range/ Adaptive black stretch: Off) |
| AGC | On (Low)/ On(Mid), On(High)/ Off |
| Maximum shutter | max. 1/1000s, max. 1/500s, max. 1/250s, max. 1/100s, max. 1/60s, max. 2/100s, max. 1/120s, max. 2/120s, max. 1/30s, max. 2/30s, max. 4/30s, max. 6/30s, max. 10/30s, max. 16/30s |
| Day/Night (ICR) | Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
| Digital Noise Reduction | High/ Low |
| Video Motion Detection | 4 areas, Sensitivity: 15 steps, Detection size: 10 steps |
| Privacy Zone | Up to 8 zones |
| VIQS | Up to 8 zones |
| Camera Title (OSD) | Up to 20 characters (alphanumeric characters, marks) |
| Focus Adjustment | ABF/ MANUAL (Html only) |
| Lens Distortion Compensation | 256 steps |
| Lens | |
| Vari Focal Length | 2.8 mm – 10 mm {1/8 inches – 13/32 inches} |
| Angular Field of View | - [16 : 9 mode] Horizontal: 31° (TELE) - 102° (WIDE) Vertical: 16° (TELE) - 55° (WIDE) - [4 : 3 mode] Horizontal: 28° (TELE) - 102° (WIDE) Vertical: 21° (TELE) - 74° (WIDE) |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) - 1 : 3.4 (TELE) |
| Focusing Range | 0.3 m - ∞ |
| Adjusting Angle (Camera mount bracket) | |
| Ceiling mounting | - Horizontal: ±180° (PAN rotation part) - Vertical: 0° to 90° (TILT rotation part) - Yaw: -190° to +100° (YAW rotation part) |
| Wall mounting | - Horizontal: ±90° (TILT rotation part) - Vertical: ±90° (TILT rotation part) - Yaw: -190° to +100° (YAW rotation part) |
| Browser GUI | |
| Cropping | Off/ JPEG(1)/ JPEG(2)/ JPEG(3)/ H.264(1)/ H.264(2)/ H.264(3)/ H.264(4)/ H.264(all) Alarm action On/ Off |
| Camera Control | Brightness, AUX On/ Off |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available |
| Digital Zoom | 1x, 2x, 4x controlled by browser GUI |
| Camera Title | Up to 20 alphanumeric characters |
| Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
| Alarm Control | Reset |
| One Shot Capture | A still picture will be displayed on a newly opened window. |
| SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded. |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| System Log | Up to 100 (Internal) Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs |
| Supported OS | Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7,Microsoft® Windows Vista® |
| Supported Browser | Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit), Safari, Google Chrome, Mozilla Firefox |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Image Resolution | - 1.3 Megapixel [16 : 9] (30 fps) 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 - 1.3 Megapixel [4 : 3] (30 fps) 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/320 x 240/ 160 x 120 - 2 Megapixel [16 : 9](30 fps mode) * Used by super resolution technology H.264(1), H.264(2) 1,920 x 1,080 / 640 x 360 / 320 x 180 / 160 x 90 H.264(3), H.264(4) 640 x 360 / 320 x 180 / 160 x 90 |
| H.264 | - Transmission Mode: Constant bit rate/ Variable bit rate/ Framerate priority/ Best effort/ Advanced VBR - Frame Rate: 1/ 3/ 5/ 7.5/ 10/ 12/ 15/ 20/ 30 fps - Image Quality (Constant bit rate/Best effort): Low (Motion priority)/ Normal/ Fine(Image quality priority) - Smart Coding mode: On (Low/ Mid/ High)/ Off (Only when 'Variable bit rate' is selected) - Refresh interva: 0.2/ 0.25/ 0.33/ 0.5/ 1/ 2/ 3/ 4/ 5s - Transmission Type: Unicast / Multicast |
| JPEG | - Image Quality: 10 steps - Refresh interval: 0.1 fps - 30 fps (JPEG frame rate will be restricted when displaying both JPEG and H.264 images.) - Transmission Type: Pull/ Push |
| Total Bit Rate | 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited |
| Supported Protocol | - IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP - IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.) |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option | - H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure Compatible (JPEG only) - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure Compatible SD (SDHC/SDXC) card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Cellular Phone Compatibility | JPEG image, AUX control (by access level) |
| Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later), Android mobile terminal |
| Alarm | |
| Alarm Source | VMD, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm noti cation Indication on browser, FTP image transfer, Panasonic protocol output |
| Alarm Log | With SDXC/SDHC/SD memory card: Up to 50,000 logs for each SD memory card |
| Schedule | Alarm/ VMD/ Access permission/ H.264 recording/ Scene file |
| Input/Output | |
| Monitor Output (for adjustment) | - VBS: 1.0 V [p-p]/75 Ω, composite, RCA jack An NTSC or PAL signal can be outputted from camera (either press the INITIAL SET switch quickly (within 1 second) or use software to select either NTSC or PAL signal). |
| General | |
| Safety | UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMS | FCC (Part15 ClassA), ICES003 ClassA, EN55022 ClassB, EN55024 |
| Power Source and Power Consumption | When IR LED is On PoE (IEEE802.3af compliant): DC 48V/ 190mA/ Approx. 9.12W (Class 0 device) |
| Ambient Operating Temperature | -30 °C to +50 °C (–22 °F to 122 °F) |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Water and Dust Resistance | IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant |
| Dimensions * Installing using the base bracke | 95 mm (W) x 99 mm (H) x 326 mm (L) {3-3/4 inches (W) x 3-57/64 inches (H) x 1ft 27/32 inches (L)} |
| Mass (approx.) | Approx. 1.4 kg {3.1 lbs} |
| Finish | Main body: Aluminum die cast, light gray Front cover section clear part: Clear polycarbonate resin |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
