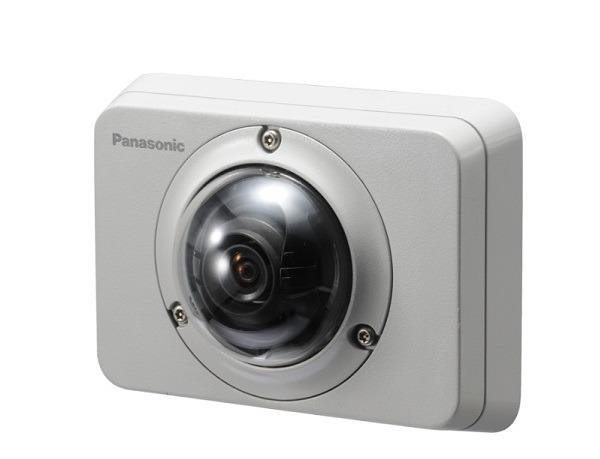

Camera IP 1.3 Megapixel PANASONIC WV-SW115
- Cảm biến hình ảnh: 1/3 type MOS Sensor.
- Độ phân giải camera ip: 1.3 Megapixel.
- Tốc độ khung hình: Lên đến 30 fps.
- Ống kính: 1.95 mm .
- Độ nhạy sáng tối thiểu: Color: 0.8 lx, BW: 0.6 lx.
- Chuẩn nén hình ảnh: H.264/JPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nhiệt độ hoạt động: -30°C to 50°C.
- Nguồn điện: PoE (IEEE802.3af compliant)/ PoE 48 V: 56 mA (Class 1 device).
Đặc tính kỹ thuật
| Model | WV-SW115 |
| Camera | |
| Image Sensor | 1/3 type MOS Sensor |
| Effective Pixels | Approx. 1.3 megapixel |
| Scanning Mode | Progressive |
| Scanning Area | 4.8 mm (H) x 3.6 mm (V) (3/16' (H) × 5/32' (V)) |
| Minimum Illumination | Color: 0.8 lx (F2.2, Auto slow shutter: Off (1/30s), Gain: On (High)) 0.05 lx (F2.2, Auto slow shutter: Max. 16/30s, Gain: On (High)) |
| White Balance | AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K) |
| Light Control Mode | Indoor scene (50 Hz/ 60 Hz)/ ELC |
| Shutter Speed | - With Super Dynamic ON: ELC (1/30 s) - With Super Dynamic OFF: ELC (1/30 s), ELC (3/100 s), ELC (3/120 s), ELC (2/100 s), ELC (2/120 s), ELC (1/100 s), ELC (1/120 s), ELC (1/250 s), ELC (1/500 s), ELC (1/1,000 s), ELC (1/2,000 s), ELC (1/4,000 s), ELC (1/10,000 s) |
| Super Dynamic | ON/OFF |
| Face Super Dynamic | ON/ OFF (Only at Super Dynamic: ON) |
| Adaptive Black Stretch | ON/ OFF |
| AGC | ON (HIGH)/ ON (MID)/ ON (LOW)/ OFF |
| Electronic Sensitivity UP | OFF (1/30 s), Max. 2/30 s, Max. 4/30 s, Max. 6/30 s, Max. 10/30 s, Max. 16/30 s |
| Day & Night (electrical) | OFF/ AUTO |
| Dynamic Range | 52dB typ. (Super Dynamic: ON, Light Control: ELC) |
| Digital Noise Reduction | HIGH/ LOW |
| Video Motion Detection | ON/ OFF, 4 areas available |
| Privacy Zone | ON/ OFF (up to 2 zones available) |
| VIQS | ON/ OFF |
| Camera Title (OSD) | Up to 20 characters (alphanumeric characters, marks), On/Off |
| Focus Adjustment | MANUAL |
| Lens | |
| Focal Length | 1.95 mm |
| Zoom Ratio | 1x/ Extra zoom: 2x (at VGA resolution) |
| Angular Field of View | Horizontal: 104°, Vertical: 85° |
| Maximum Aperture Ratio | 1 : 2.2 |
| Focusing Range | 0.5 m ~ ∞ |
| Adjusting Angle | |
| Adjusting Angle | Wall Installation Horizontal: ±30 ° Vertical: ±30 ° |
| Browser GUI | |
| Camera Control | Brightness |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available |
| Digital Zoom | 1x, 2x, 4x controlled by browser GUI |
| Camera Title | Up to 20 alphanumeric characters |
| Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
| One Shot Capture | A still picture will be displayed on a newly opened window |
| SD Memory Data Download | Still or motion Images recorded in the SDHC/SD memory card can be downloaded. |
| GUI/Setup Menu Language | English, Italian, French, German, Spanish, Chinese, Russian, Japanese |
| System Log | Up to 100 (Internal), Up to 4,000 (SDHC/SD memory when the recording format is set to JPEG.) error logs |
| Supported OS | Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista® |
| Supported Browser | Windows® Internet Explorer® 11.0 (32 bit), Windows® Internet Explorer® 10.0 (32 bit), Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0 (32 bit), Windows® Internet Explorer® 7.0 (32 bit) |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ-45 connector (female) |
| Image Resolution | - Aspect ratio [4 : 3]: + H.264: 1,280 x 960/ VGA (640 x 480)/ QVGA (320 x 240), up to 30 fps + JPEG: 1,280 x 960/ 640 x 480/ 320 x 240, up to 30 fps - Aspect ratio [16 : 9]: + H.264: 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps + JPEG: 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps |
| H.264 | - Transmission Mode: Constant bitrate/ Framerate priority/ Best effort/Advanced VBR - Frame Rate: 1/ 3/ 5/ 7.5/ 10/ 15/ 20/ 30 fps 1/ 3/ 5/ 7.5/ 10/ 12/ 15/ 20/ 30 fps - Bit Rate/Client: 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 1,536/ 2,048/ 3,072 4,096/ 8,192* kbps * H.264 mode only - Image Quality: LOW/ NORMAL/ FINE - Transmission Type: UNICAST/ MULTICAST |
| JPEG | - Image Quality: 10 steps - Refresh Interval: 0.1 fps ~ 30 fps - Transmission Type: PULL/ PUSH |
| Total Bit Rate | 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDHC/SD memory card is available.) |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDHC/SD Memory Card (Option) | Manufactured by Panasonic SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB SD memory card: 256 MB, 512 MB, 1 GB, 2 GB except miniSD card and microSD card |
| Cellular Phone Compatibility | JPEG image |
| Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later), AndroidTM mobile terminals |
| Alarm | |
| Alarm Source | VMD, Command alarm |
| Alarm Actions | SDHC/SD memory recording, E-mail noti cation, Indication on browser, FTP image transfer, Panasonic protocol output |
| Alarm Log | With SDHC/SD memory card: 5,000 logs, without SDHC/SD memory card: 1,000 logs |
| Schedule | VMD |
| General | |
| Safety/EMC Standard | UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 FCC Part15 Class A, ICES-003 Class A, EN55022 Class B, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant)/ PoE 48 V: 56 mA (Class 1 device) |
| Ambient Operating Temperature | –30 °C ~ +50 °C (–22 °F ~ 122 °F) |
| Ambient Operating Humidity | 20 % ~ 90 % (no condensation) |
| Impact Protection | Compliant with 20 J IEC60068-2-75 |
| Water and Dust Resistance | Camera: IP66 (IEC60529) |
| Railway Application | EN50155, EN50121 |
| Dimensions | 121 (W) mm x 87 (H) mm x 49 (L) mm {4-49/64 inches (W) x 3-7/16 inches (H) x 1-15/16 inches (L)} |
| Mass (approx.) | 400 g {0.88 lbs} |
| Finish | Main body: Aluminum die cast, light gray, Dome section: Clear polycarbonate resin |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
