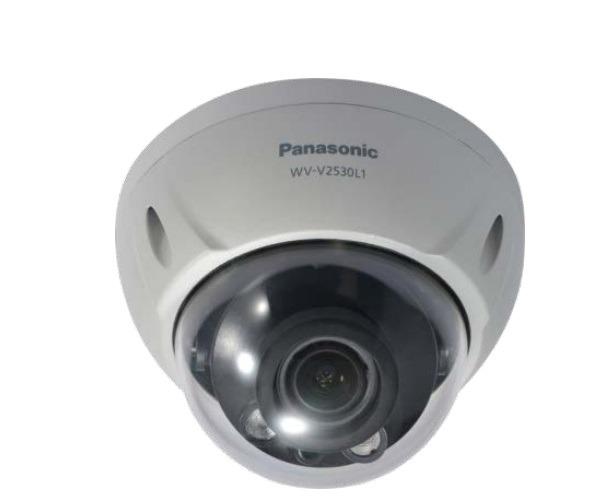

Camera IP Dome hồng ngoại 2.0 Megapixel PANASONIC WV-V2530L1
- Cảm biến hình ảnh: Approx. 1/2.8 type CMOS image sensor.
- Độ phân giải camera quan sát: 2.0 Megapixel (25/30fps@1080P (1920 ×1080)).
- Chuẩn nén hình: H.265/ H.264/ MJPEG.
- Tiêu cự: 2.7 mm - 12 mm.
- Góc quan sát: H: 37° to 99°/V: 21° to 52°.
- Tầm quan sát hồng ngoại: Tối đa 30 mét.
- Hỗ trợ thẻ nhớ Micro SD, tối đa 128GB.
- Hỗ trợ chức năng Day/ Night (ICR).
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 12VDC 12W/ PoE (IEEE802.3af) 8.6W.
Đặc tính kỹ thuật
| Model | WV-V2530L1 |
| Camera | |
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Min Illumination | 0.2 lx/ F1.4 (color), 0 lx/ F1.4(IR on) |
| Gain | Auto/ Manual |
| Back light compensation | OFF/ BLC/ HLC/ WDR |
| Shutter speed | Auto/ Manual, 1/3 sec~1/100000 sec |
| Day/ Night | Auto(ICR)/ Color/ Black & White |
| IR LED Light | Irradiation distance: 30 m {Approx. 98 ft} |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor/Manual |
| Digital Noise Reduction | 3DNR ON/ OFF |
| Privacy masking | Up to 4 areas |
| Video Motion Detection | On/ Off (4 Zones, Rectangle) |
| Tampering Detection | On/Off |
| Lens | |
| Zoom ratio | 4.4x Optical (Motorized zoom/ Motorized focus) |
| Focal Length | 2.7 mm to 12 mm |
| Angular Field of View | H: 37°(TELE) to 99° (WIDE) V: 21°(TELE) to 52°(WIDE) |
| Network | |
| Network | 10BASE-T/ 100BASE-TX, RJ45 connector |
| Resolution | 1080P(1920x1080)/ 1.3 M (1280x960)/ 720P (1280x720)/ 640x480/ 640x360/ 320×240 |
| Image compression method | H.265/ H.264/ MJPEG |
| Frame Rate | 1 to 25/30 fps |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/ IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, DDNS, FTP, QoS, 802.1x |
| Maximum concurrent access number | 20 users (Number of sessions that can connect to cameras at the same time) |
| Compatible micro SDXC/ SDHC memory card | 4 to 128 GB |
| General | |
| Power source | 12 VDC, PoE (IEEE802.3af compliant) |
| Power Consumption | 12 VDC: 1A/ Approx. 12W PoE 48 VDC: 180 mA/ Approx. 8.6 W (Class 0 device) |
| Ambient Operating Temperature/ Humidity | -30 °C to +60 °C {-22 °F to 140 °F} 10 % to 90 % (no condensation) |
| Water and Dust Resistance | Main body: IP66 |
| Vandal Resistant | Compliant with IK10 (IEC62262) |
| Dimensions | Φ122 mm × 89 mm (H) {ø4-13/16 inches × 3-1/2 inches (H)} |
| Weight (approx.) | Approx. 460 g {1.01 lbs} |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
