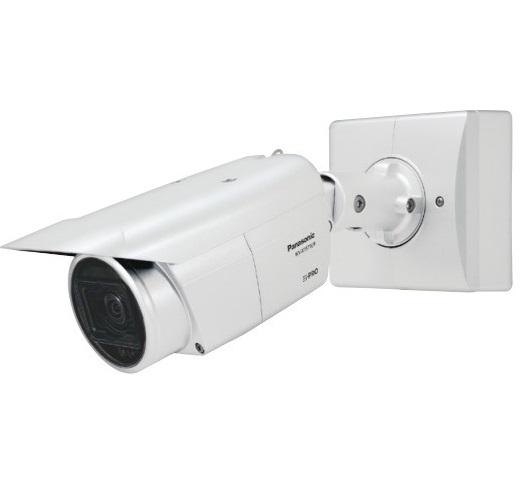

Camera IP hồng ngoại 5.0 Megapixel PANASONIC WV-X1551LN
- PANASONIC WV-X1551LN là dòng camera IP hồng ngoại 5.0 Megapixel.
- Cảm biến hình ảnh: 1/2.8 type CMOS image sensor.
- Độ phân giải: 5.0 Megapixel.
- Ống kính: 2.9 mm - 9 mm.
- Độ nhạy sáng tối thiểu: Color: 0.07lx, BW: 0.04lx; B/W: 0.0lux (with IR LED on).
- Góc quan sát: Ngang: 34°-106°, Dọc: 19°-57°.
- Tầm quan sát hồng ngoại: 40 mét.
- Zoom quang: 3.1x (Motorized zoom/Motorized focus).
- Chống ngược sáng thực WDR 132dB.
- Chức năng quan sát ngày đêm ICR.
- Hỗ trợ tính năng AI (Intelligent Auto).
- Chuẩn nén hình ảnh: H.265, H.264, JPEG.
- Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 256GB.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Hỗ trợ kết nối ONVIF G/S/T.
Đặc tính kỹ thuật
| Model | WV-X1551LN |
| Camera | |
| Image Sensor | 1/2.8 type CMOS image sensor |
| Minimum Illumination | - Color: 0.07 lx, BW: 0.04 lx (50IRE, F1.3, Maximum shutter: Off (1/30s), AGC: 11) - BW: 0 lx (50IRE, F1.3, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) - Color: 0.0044 lx, BW: 0.003 lx (50IRE, F1.3, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | ATW1/ATW2/AWC |
| Shutter Speed | [30fps mode] 1/30 Fix to 1/10000 Fix [25fps mode] 1/25 Fix to 1/10000 Fix |
| AI Intelligent Auto | On/Off |
| Super Dynamic | On/Off, The level can be set in the range of 0 to 31 |
| Dynamic Range | Max.132 dB (Super Dynamic : On, Level : 30 or more, 15fps) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back light compensation/High light compensation | BLC (Back light compensation)/HLC (High light compensation)/Off The level can be set in the range of 0 to 31. (only when Super dynamic/AI Intelligent Auto: Off) |
| Fog compensation | On/Off, The level can be set in the range of 0 to 8 (only when AI Intelligent auto/auto contrast adjust: Off) |
| Maximum gain | The level can be set in the range of 0 to 11 |
| Color/BW (ICR) | Off /On (IR Light Off)/On (IR Light On)/Auto1(IR Light Off)/Auto2 (IR Light On)/Auto3 (SCC) |
| IR LED Light | High/Middle/Low/Off, Maximum irradiation distance: 40m {Approx. 131 ft} |
| Digital Noise Reduction | The level can be set in the range of 0 to 255 |
| Video Motion Detection (VMD) | On/Off, 4 areas available |
| Scene Change Detection (SCD) | On/Off, 1 area available |
| Privacy Zone | On/Off, Up to 8 zones available |
| Image rotation | 0° (Off)/ 90°/180° (Upside-down)/ 270° |
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
| Lens | |
| Optical zoom | 3.1x (Motorized zoom/Motorized focus) |
| Extra optical zoom | 3.1x - 9.3x (when resolution is 640x360) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Focal length | 2.9 mm – 9 mm {1/8 inches – 11/32 inches} |
| Maximum Aperture Ratio | 1 : 1.3 (WIDE) – 1 : 2.5(TELE) |
| Focus range | 0.3 m {11-13/16 inches} – ∞ |
| Angular Field of View | [16 : 9 mode ] *[4:3 mode] is not supported. Horizontal: 34° (TELE) – 106° (WIDE), Vertical: 19° (TELE) – 57° (WIDE) |
| DORI | |
| Detect (25ppm / 8ft) | Wide: 46.3 m / 151.90 ft, Tele: 200.96 m / 659.32 ft |
| Observe (62.5ppm / 19ft) | Wide: 18.52 m / 60.76 ft, Tele: 80.38 m / 263.72 ft |
| Recognize (125ppm / 38ft) | Wide: 9.26 m / 30.38 ft, Tele: 40.19 m / 131.86 ft |
| Identify (250ppm / 76ft) | Wide: 4.63 m / 15.19 ft, Tele: 20.1 m / 65.93 ft |
| Adjusting Angle | |
| Ceiling mounting | Horizontal: ±180° (Adjust by horizontal (PAN) angle) Vertical: 0° to 100° (Adjust by vertical (TILT) angle) Yaw: –190° to +100° (Adjust by azimuth (YAW) angle) |
| Wall mounting | Horizontal: ±100° (Adjust by vertical (TILT) angle)* Vertical: ±100° (Adjust by vertical (TILT) angle)* Yaw: –190° to +100° (Adjust by azimuth (YAW) angle) *You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle. |
| Browser GUI | |
| Camera Control | Brightness, AUX On / Off |
| Audio | - Mic (Line) Input: On / Off Volume adjustment: Low / Middle / High - Audio Output: On / Off Volume adjustment: Low / Middle / High |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264/JPEG (MJPEG) | [16 : 9 mode ] *[4:3 mode] is not supported. 3072×1728, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180 |
| H.265/H.264 | Transmission Mode: Constant bit rate / VBR / Frame rate / Best effort |
| Transmission Type: Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast | |
| JPEG | Image Quality: 10 steps |
| Smart Coding | Smart Facial Coding : On (Smart Facial Coding*) / On (Auto VIQS) / Off *Smart Facial Coding is only available with Stream |
| GOP (Group of pictures) control: On (Frame rate control)*/ On (Advanced)*/ On (Mid)/ On (Low)/ Off *On (Frame rate control) and On (Advanced) are only available with H.265 | |
| Audio Compression | G.726 (ADPCM): 16 kbps/32 kbps , G.711: 64 kbps AAC-LC: 64 kbps/96 kbps/128 kbps |
| Audio transmission mode | Off / Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card | - H.265/H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - JPEG recording : Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure - Compatible SDXC/SDHC/SD Memory Card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals |
| ONVIF Profile | G / S / T |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output |
| Input/Output | |
| Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera |
| Audio input | ø3.5 mm stereo mini jack |
| For microphone input: - Recommended applicable microphone: Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz)) - Input impedance: Approx. 2 kΩ (unbalanced) - Supply voltage: 2.5 V ±0.5 V | |
| For line input Input level: Approx. –10 dBV | |
| Audio Output | ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV |
| External I/O Terminals | ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1), ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | DC power supply: DC 12 V 930 mA/Approx. 11.2 W PoE (IEEE802.3af compliant) Device: DC48 V 240mA/Approx. 11.5 W (Class 0 device) |
| Ambient Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F)*11 (Power On range : –30 °C to +60 °C {–22 °F to +140 °F}) |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Dehumidification Device | Rosahl element |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC 62262) |
| Wind Resistance | Up to 40 m/s {approx. 89 mph} |
| Dimensions | With adapter box : 133 mm (W) x 133 mm (H) x 377 mm (L) {5-1/4 inches(W) x 5-1/4 inches(H) x 14-27/32 inches(L)} Without adapter box : 130 mm (W) x 130 mm (H) x 337 mm (L) {5-1/8 inches(W) x 5-1/8 inches(H) x 13-9/32 inches(L)} |
| Mass | With adapter box : 2.2 kg {4.85 lbs} Without adapter box : 1.7 kg {3.75 lbs} |
| Finish | Main body: Aluminum die cast and resin, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Front panel: Polycarbonate resin (with ClearSight coating), Clear |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
