| Model | Z5R6552X |
| Min. illumination/Low Light Mode (Colour) | Color : 0.05 Lux at F1.6 ; B/W : 0.007 Lux at F1.6 ; 0 Lux with IR LED ON |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% ~ 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 7.4W / PoE, 10.0W |
| Lens | 2.8 – 8 mm (zoom / focus motorized) |
| Iris | F1.6 |
| Iris Control | Fixed IRIS |
| Angle of View | 90.6° (W) – 53.3° (T) (H) 66.8° (W) – 39.8° (T) (V) 114.3° (W) – 66.4° (T) (D) |
| Peak wavelength | 850nm |
| Beam Spread | 30°, 50° |
| Max IR distance | 30M |
| Pick Up Element | 1/2.7" CMOS image sensor |
| Effective pixels | 2608(H) X 1960(V) = 5,499,760 (Pixels) |
| Light sensor | Yes |
| CE | Yes, EMI CLASS A |
| FCC | Yes, EMI CLASS A |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 |
| CPU | Intel Core i7 |
| OS | Windows 7 or above |
| RAM | 8GB or more, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above |
| Dimensions | Ø115 × 91 mm |
| Weight | 435g |
| Casing Material | Aluminum alloy |
| Video Compression | H.265/HEVC Main Profile, H.264 Main Profile , Motion JPEG |
| Video streaming | RTSP/UDP, RSTP/TCP, configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video bitrate | 128Kbps - 8192Kbps, Frame rate and bit rate controllable on-the-fly, VBR / CBR / GOP supported, H.264/H.265 |
| Encryption | Base64 HTTP encryption, Digest HTTP authentication, RTSP Authentication |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Access | Multiple user access levels with password protection |
| Users | 7 simultaneous users |
| Resolution | 5MP(2592 × 1920), 4MP(2304 × 1728), 3MP(2304x1280), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), 720 × 576, 720 × 480, 720 × 384, VGA(640 × 480), CIF(352 × 256) |
| Frame Rates | 2592x1944 / 20 fps |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Schedule / Day (Color) / Night (Mono) |
| White Balance | Auto/ Manual (adjustable) |
| Back Light Compensation (BLC) | Off / On |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Sense Up | Off / x2 / x4 |
| Sense Up+ | Yes |
| Auto Gain Control | 36 dB Variable Gain |
| S / N Ratio | More than 48dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto (x2, x3, x4) |
| Privacy Masking | Off / On (4 zones) color mask configurable |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation |
| Auto Focus | One Push |
| Mobile phone | Integrated to LILIN mobile app (LILIN Viewer), iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / LILIN Navigator Enterprise 2.0 support, Third party VMS through LILIN HTTP API |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| Alarm event triggers | Motion / Network lost detection / Global Counter / Virtual Input / Metadata |
| Alarm event actions | FTP / SMTP / HTTP POST / Global Counter / Virtual Input |
| Languages | English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese |
| Network Interface/Ethernet | 10/100 Mbps Base-T, RJ-45 |
| OSD | Text overlay for date, time, and camera name (position configurable text overlay for date, time, camera name) |
| CPU.Memory | SoC ARM Cortex-A7 Single Core,Embedded DDR2, size up to 512MB flash memory |
| Network OS | Embedded Linux 3.10 |
| Protocols | IPv4, TCP, UDP, HTTP, HTTPS, SMTP, NTP, DDNS, FTP, ARP, DHCP, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SSL/TLS |
| User accounts | 7 simultaneous users |
| Video Display | LILIN Universal ActiveX |
| Log | System / Config / User / Network |
| High Dynamic Range(HDR) | Up to 70dB (DWDR on) |
| EV (Exposure Value) | Adjustable |

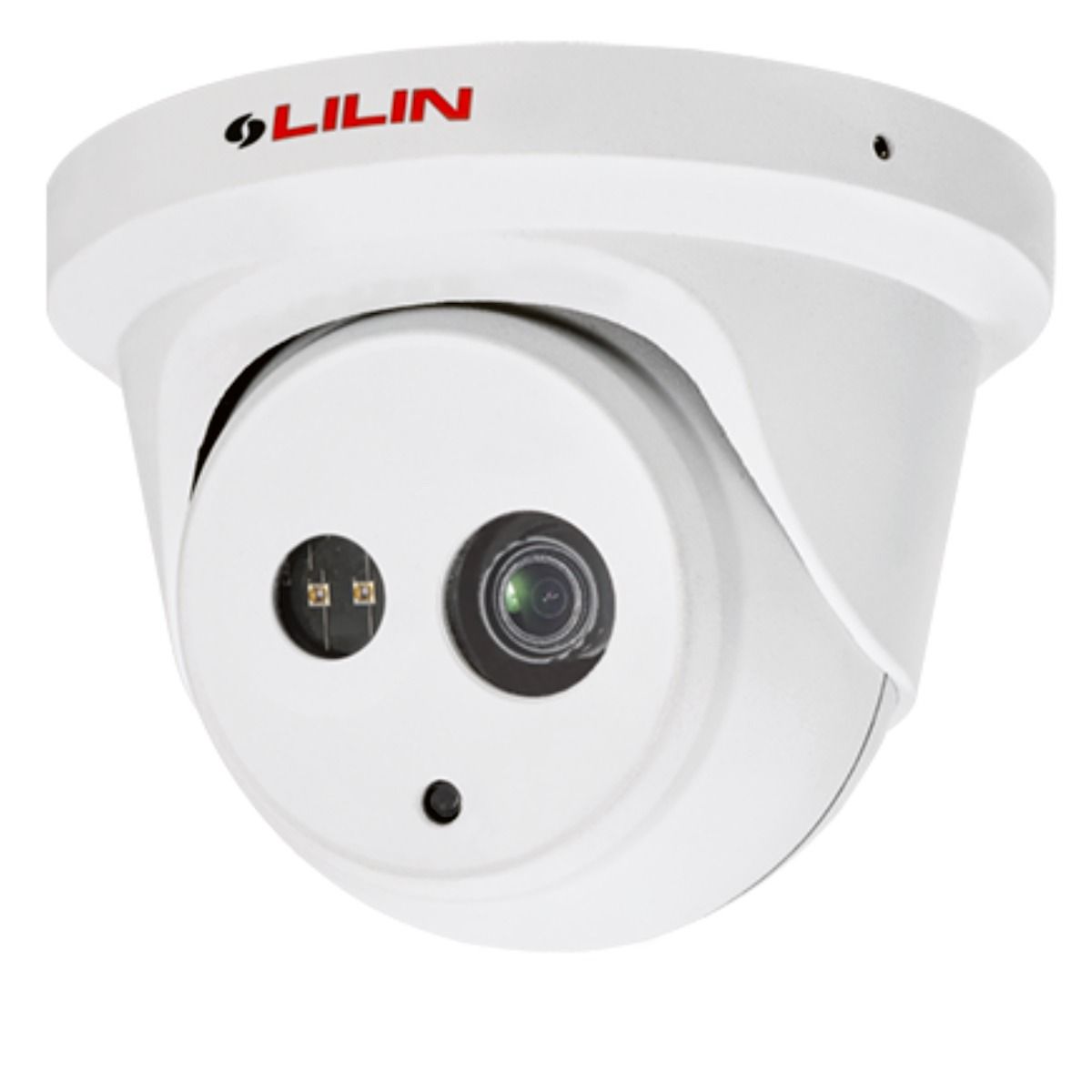

Z5R6552X, 5MP, 20fps, 30M IR
- MS 0016020
Độ phân giải hình ảnh Full HD 5 megapixel CMOS
Chuẩn nén video hiệu suất cao 5MP H.265 / HEVC và H.264 / AVC
Phát trực tuyến đồng thời các luồng được mã hóa H.265 và H.264
Lấy nét tự động với ống kính cơ giới thu phóng / lấy nét
Giảm nhiễu 3D (MCTF)
Chức năng WDR 2D
