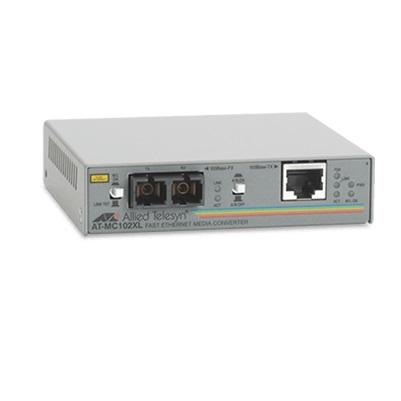

100BaseTX to 100BaseFX Fast Ethernet to Fiber Media Converter AT-MC102XL
- This standalone media converter features 100TX to 100FX conversion with multi-mode SC fiber connector supporting up to a distance of 2km.
- It is powered by an external power supply unit for use in standalone applications and also compatible with the MCR12 chassis, which powers all converters with a single internal power supply.
- The Allied Telesis range of Fast Ethernet media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fiber cabling. Supporting both SC and ST fiber connectors, MC100 Series converters can be used to extend networks with up to two km of multi-mode fiber or 40 km of single-mode fiber.
- Half- and full-duplex operation.
- Transparent to IEEE 802.1Q packets.
- Rackmountable using optional MCR12, TRAY4 or TRAY1 chassis.
- Wallmountable using WLMT.
- Auto MDI/MDI-X.
- MissingLink.
- Link test.
- RoHS compliant.
Đặc tính kỹ thuật
| Model | MC102XL |
| Port type (connector) | 100FX MMF (SC) |
| Cable distance | 2 km |
| Optical frequency | 1310 nm |
| Launch power (dbm) | Maximum: -14.0 |
| Average: -16.8 | |
| Minimum: -19 | |
| Receive power (dbm) | Minimum sensitivity: -31.8 |
| Typical sensitivity: -34.5 | |
| Saturation: -14.0 | |
| Power | Indicates power is applied to the converter |
| Round trip delay | 0.4µs maximum |
| ML - link Test | Enable MissingLink |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Relative humidity | 5% to 95% (non-condensing) |
| External power supply | 120VAC, 60Hz (US model), 240V AC, 50Hz (European models) |
| Input supply voltage | 12VDC |
| Max current | 500mA |
| Power consumption | 6W |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Relative humidity | 5% to 95% (non-condensing) |
| Storage temperature | -20°C to 80°C (-4°F to 176°F) |
| Operating altitude | 0 to 10,000 feet |
| Dimensions | 10.5 × 9.5 × 2.5 cm |
| Weight | 294 g |
- Bảo hành: 12 tháng.
