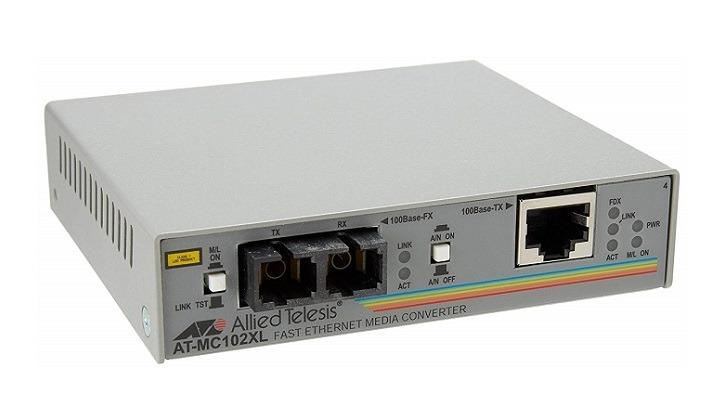

100TX to 100FX (SC) Media Converter ALLIED TELESIS AT-MC102XL
- Half- & Full-Duplex operation.
- Transparent to 802.1Q packets.
- Rack-mountable using optional AT-MCR12, TRAY4, or TRAY1 chassis.
- Auto MDI/MDIX.
- MissingLink.
- Link Test.
- RoHS compliant.
Đặc tính kỹ thuật
| Model | AT-MC102XL |
| Performance | |
| Port type | 100FX MMF (SC) |
| Cable distance | 2 km |
| Optical frequency | 1310 nm |
| Status Indicators | |
| Power | Indicates power is applied to the converter |
| Link | Indicates a valid receive link exists |
| Activity | Indicates TX/RX on the port |
| ML | Indicates MissingLink |
| Switches | |
| ML - link Test | Enable MissingLink |
| A/N | Enable auto-negotiation |
| Packet Transmission Characteristics | |
| Round trip delay | 0.4µs maximum |
| Bit Error Rate (BER) | <10-12 |
| Electrical and Mechanical Approvals | |
| EMC | FCC Class A (MC104XL) |
| EMC | FCC Class B |
| Safety compliant | UL-Cul, CSA/CSA, NRTL, TUV, CE compliant |
| Power Characteristics | |
| External power supply | 120V AC, 60Hz (US model), 240V AC, 50Hz (European models) |
| Input supply voltage | 12vDC |
| Max current | 500mA |
| Power consumption | 6W |
| Environmental Specifications | |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Relative humidity | 5% to 95% (non-condensing) |
| Storage temperature | -20°C to 80°C (-4°F to 176°F) |
| Operating altitude | 0 to 10,000 feet |
| Physical Specifications | |
| Dimensions | 10.5 cm × 9.5 cm × 2.5 cm (W × D × H) |
| Weight | 294 g |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
