10/100M Multi-mode Media Converter Alantek

Part Number: 3MC-FDM2EX-TU02

- Auto-negotiation Fast Ethernet Fiber Converter can achieve the conversion between 10/100BASE-TX and 100BASE-FX, extending the transmission distance of legal 10M Ethernet or 100M Fast Ethernet up to 120km through Single Mode Fiber. It supports a wide variety of networks providing a reliable and cost-effective fiber optic connectivity solution for Enterprise networks.

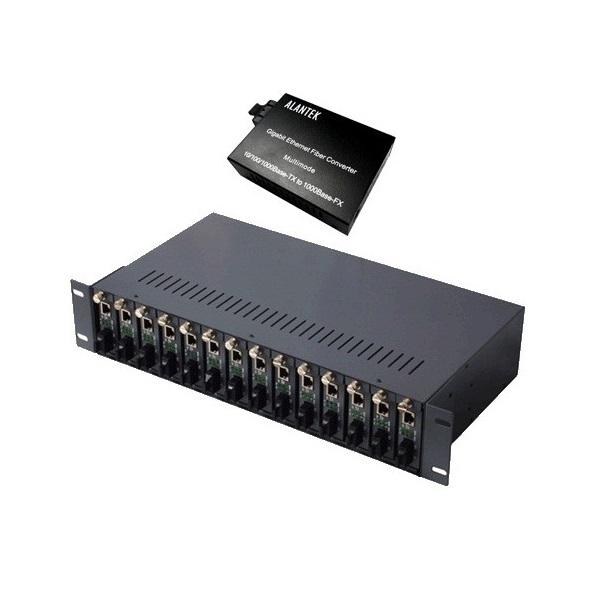

- The modular design and flexible configuration enable scalable fiber network implementation. It can be used as a standalone module or with a 14-slot rack mount chassis.

- Suitable for extending application distance of traditional 100m copper network.

- Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3x Flow Control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree.

Features

- Multimode with SC connectors.

- Support MDI/MDI-X auto crossover.

- Support half or full duplex mode communication with auto-negotiation function.

- Spanning Tree Protocol.

- External Power Supply.

- Conform to FCC and CE safety standards.

- Sản xuất tại Trung Quốc.
