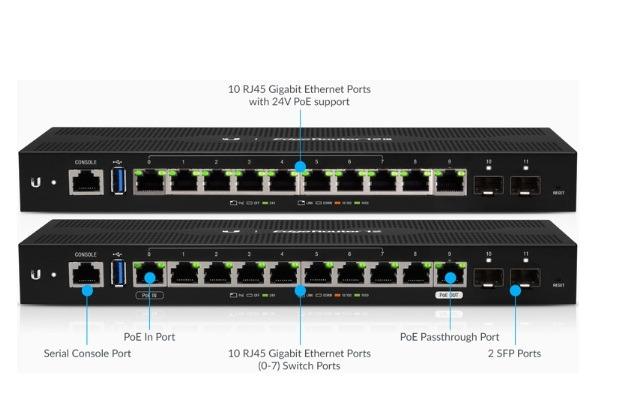

10-Port Gigabit PoE Passthrough+2 SFP Ports Ubiquiti EdgeRouter 12
Model: ER-12
- (10) Gigabit RJ45 routing ports
- 24V PoE input on port 0
- 24V PoE passthrough option on port 9
- Ports 0-7 can be configured for line-rate Layer 2 switching
- (2) Gigabit SFP ports
- 3.4 million packets per second for 64-byte packets
- 6.8 Gbps for packets 1518 bytes or larger in size
- Silent, fanless operation
- Compact, durable metal case
Đặc tính kỹ thuật
| Dimensions | 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22inch) |
| Weight | 700 g (1.54 lb) |
| Max. Power Consumption | 20W (Excludes PoE Output) |
| Power Method | 24VDC, 1A Power Adapter (Included); 24V Passive PoE |
| Power Supply | External AC/DC Adapter |
| Passive PoE | Voltage Range: DC/PoE Passthrough Max. Wattage per Port: 20W (24V) |
| Supported Voltage Range | 9 - 30VDC |
| Button | Reset |
| LEDs | System: Power Data Ports: Speed/Link/Activity; PoE (Ports 0 and 9 only) SFP Data Port: Link/Activity |
| Processor | 4-Core 1 GHz MIPS64 |
| System Memory | 1 GB DDR3 RAM |
| On-Board Flash Storage | 4 GB eMMC, 8 MB SPI NOR |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Interfaces | Management - RJ45 Serial Port; - Ethernet Ports (Default Port Networking - 10/100/1000 RJ45 Ports; - Port 0 Supports PoE IN; - Port 9 Supports PoE Out; - 1 Gbps SFP Ports |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
- Thương hiệu Ubiquiti của Mỹ.
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
