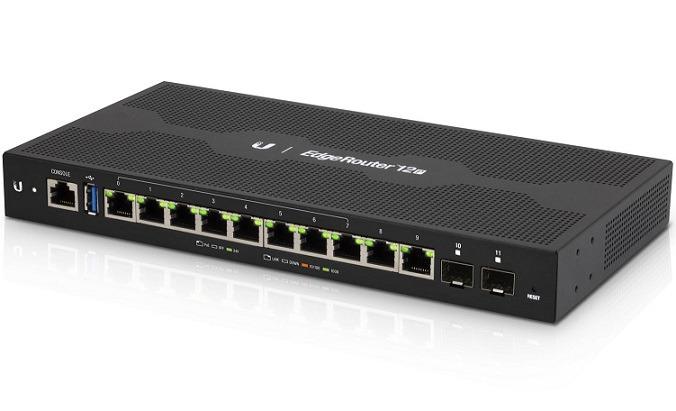

10-Port Gigabit with PoE + 2 SFP Ports Router UBIQUITI EdgeRouter 12P
Model: ER-12P
- CPU: 4-Core 1GHz, MIPS64.
- RAM: 1G DDR3.
- Bộ nhớ lưu trữ: 4 GB eMMC, 8 MB SPI NOR.
- (10) cổng mạng 1 Gbps.
- 24V PoE support on RJ45 ports.
- Ports 0-7 can be configured for line-rate Layer 2 Switching.
- (2) Cổng SFP.
- (1) Cổng Console.
- 3,4 million+ packets per second for 64‑byte packets.
- 6,8 Gbps packets 1516‑bytes or larger in size.
- Lắp đặt để bàn hoặc treo tường.
Đặc tính kỹ thuật
| Model | ER-12P |
| Dimensions | 268.1 x 136.5 x 31.1 mm |
| Weight | 700 g |
| Max. Power Consumption | 20W (Excludes PoE Output) |
| Power Method | External AC/DC Power Adapter, 60W (24V, 2.5A) (Included) |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | 9 - 30VDC |
| Button | Reset |
| LEDs | Speed/Link/Activity, PoE, Link/Activity |
| Networking Interfaces | (1) RJ45 Serial Port (10) Ethernet Ports (Default Port 0) (10) 10/100/1000 RJ45 Ports with PoE (2) 1 Gbps SFP Ports |
| Layer 3 Forwarding Performance | 3,400,000 pps 6.8 Gbps (Line Rate) |
| Processor | 4-Core 1 GHz, MIPS64 |
| System Memory | 1 GB DDR3 RAM |
| On-Board Flash Storage | 4 GB eMMC, 8 MB SPI NOR |
| Mounting | Wall, Rack |
| Operating Temperature | -10 to 40° C |
| Operating Humidity | 10 - 90% Noncondensing |
- Bảo hành: 12 tháng.
