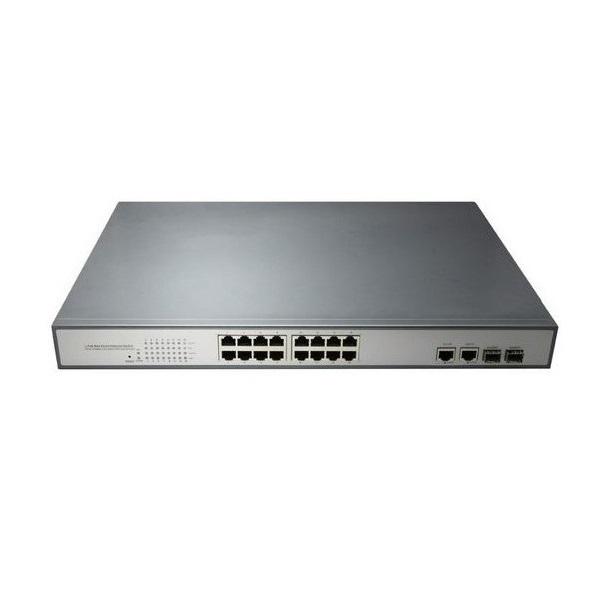

16-port 10/100/1000Mbps PoE Switch BTON BT-6216GE-SFP
-16 port 10/100/1000Base-T(X) PoE + 2 port 1000Base-F(X), SFP socket.
-Tích hợp 16 port 10/100/1000Base-T(X) PoE + 2 port 10/100/1000Base-T(X) + 2 port 1000Base-F(X).
-Khoảng cách truyền: 20 km.
-Ngõ giao tiếp quang: Connector SC.
-Ngõ giao tiếp mạng: RJ45.
-Tương thích các chuẩn: IEEE 802.3af.
-Công suất tiêu thụ: 15.4W cho mỗi port.
Features
-IEEE 802.3af power on up to 16 ports.
-Supply power to wireless access points and surveillance cameras over Cat-5 cabling
-16 port 10/100/1000Mbps ports with AutoUplink™
-Supports PoE power up to 15.4W for each PoE port
-Supports PoE power up to 400W for all PoE ports
-Supports PoE IEEE 802.3af compliant PDs
-Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
-8K entry MAC address table of the PoE Switch BT-6226FE-GESFP with auto-learning and auto-aging
-LED indicators for monitoring power, link, activity and speed
-External power adapter supply.
Specifications
| Product Name | 16 port 10/100/1000Mbps POE+2 1000M UTP+2 1000M Fiber SFP (Combo) |
| Connector Type | 16 x 10/100/1000Mbps RJ45 ports (all ports support MDI/MDIX) + |
| 2 x 10/100/1000M combo ports | |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter); 100BASE-TX: Cat5 and more UTP(≤100 meter) |
| Bandwidth | 8.8Gbps (non-blocking) |
| MTBF | 190,000 hours (about 21 years) |
| Network Latency | maximum delay less than 20 microseconds |
| Forwarding Mode | Store and forward |
| Network Protocols | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; |
| IEEE 802.3x Flow Control; IEEE 802.3af | |
| LED Display | System: power supply; Every Port: connecting, Ethernet working status |
| PoE Ports | 16 ports support PoE |
| PoE Port Power | 15.4W |
| PoE Standard | IEEE 802.3af |
| Working Environment | Operating Temperature: 0 ° ~ 55 ° C; |
| Storage Temperature: -20 ° ~ 75 ° C; | |
| Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); | |
| Storage Altitude: 3,000 m (10,000 ft) | |
| Certification | CE, FCC, Rohs |
| Transmission Distance | Single mode(9/125um) optical transmission, |
| Transmission distance: 20km (double optical default, single optical alternative) | |
| Product Size | 440 x 275 x 44.5mm |
-Sản xuất tại Trung Quốc.
-Bảo hành: 15 tháng (Adaptor bảo hành 6 tháng).
