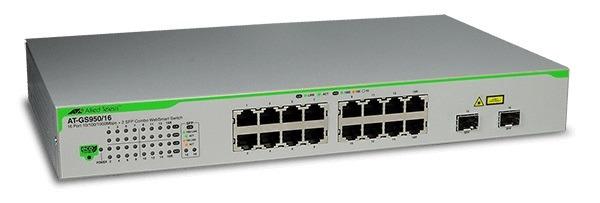

16 port 10/100/1000T ports WebSmart Switch ALLIED TELESIS AT-GS950/16
- 16 port 10/100/1000T WebSmart switch with 2 SFP combo ports.
- Allied Telesis’ WebSmart switch integrates the simplicity of unmanaged switches with the
performance and reliability of managed switches to provide a cost-effective solution for users
to integrate management at the edge of their network.
- This WebSmart switch provides a network manager some key features using the simple web-based management function such as; port-based VLANs, IEEE 802.1p QoS, port trunking/link aggregation, port mirroring, priority queues and IEEE 802.1x security support.
- With support of up to 8K MAC addresses and a 2MB packet buffer the AT-GS950/16 WebSmart switch is an ideal option for integrating management into your network solution.
- VLAN ID’s available: 4K.
- Max VLANs: 200 tagged + 56 port-based.
- IEEE 802.1p tagging.
- Port-based priority.
- Four priority queues per port.
- IGMP snooping (v1/v2).
- Static multicast group.
- Spanning-Tree, IEEE 802.1d/w.
- Local authentication server (MD5 only).
- Remote authentication through RADIUS.
- Dynamic VLAN assignment.
- RADIUS client for IEEE 802.1x.
- DHCP client.
- Statistics charts in Web.
- Firmware upgrade by FTP and Web.
- Configuration back-up/restore by FTP.
- Factory reset.
- Password access control and restricted IP access list.
- SNMPv1/v2c.
Đặc tính kỹ thuật
| Model | AT-GS950/16 |
| Interface Connections | 16 port 10/100/1000T WebSmart switch with 2 SFP combo ports |
| 10/100/1000T: RJ-45 | |
| SFP: 100TX, 100FX, 1000T, 1000SX or 1000LX | |
| MAC addresses | 8K |
| VLAN ID’s available | 4K |
| Max VLANs | 200 tagged + 56 port-based |
| Multicast | Up to 32 static multicast groups |
| Packet buffer | 2MB |
| DRAM | 16MB |
| Flash | 4MB |
| Switch memory | 2MB embedded |
| Switching capacity | 32Gbps |
| Throughput | 23.8Gbps |
| Operating temp | 0°C to 45°C (32°F to 113°F) |
| Non-operating temp | -20°C to 70°C (-4°F to 158°F) |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Dimensions | 35.2 x 25.6 x 4.32cm |
| Weight | 2.38kg |
- Bảo hành: 12 tháng.
