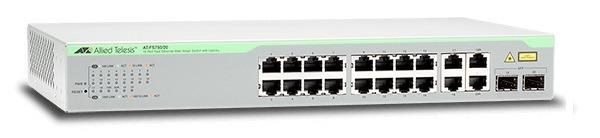

16 port 10100T + 2 port 10/100/1000T + 2 port SFP/1000T Switch ALLIED TELESIS AT-FS750/20
- 16 port 10100T + 2 port 10/100/1000T + 2 port SFP/1000T.
- The Allied Telesis FS750/20 Series of WebSmart network switches demonstrates the Allied Telesis commitment to environmentally-friendly processes and products, minimizing power consumption through the use of a high efficiency power supply and a low power chipset. Featuring PoE+, FS750 Series switches at the network edge are the ideal cost-effective solution for small businesses.
Features
VLAN
- IEEE 802.1Q tagged.
- Port-based.
- Up to 256 groups.
Quality of Service Classification
- IEEE 802.1p tagging.
- Port-based priority.
- Four priority queues per port.
IP Multicast Support (IPv4)
- IGMP snooping (v1/v2).
- Static multicast group (up to 256).
- Spanning-Tree, IEEE 802.1d/w/s.
IEEE 802.1x Port-based, MAC-based and Network Access Control
- Local authentication server (MD5 only).
- Remote authentication through RADIUS.
- Dynamic VLAN assignment.
- RADIUS Client.
Management Features
- Web-based configuration.
- Discovery support.
- SNMP trap view.
- LLDP.
- Firmware upgrade by FTP and HTTP.
- Configuration backup/restore by FTP and HTTP.
- Factory reset.
- Password access control and restricted IP access list.
- SNMPv1/v2c/v3
- Management IP: DHCP client for Web
- Management and static IP setting
- Syslog support
- System time configuration (SNTP, manual)
MIBs
- RFC 1213 MIB-II
- RFC 1643 Ethernet MIB
- RFC 1493 Bridge MIB
- RFC 2131 DHCP client
Đặc tính kỹ thuật
| Model | AT-FS750/20 |
| Interface Connections | 16-port 10/100TX + 2 10/100/1000T + 2 SFP/1000T Combo Ports |
| Switching capacity | 11.2Gbps |
| Forwarding rate | 8.3Mpps |
| Fan | Fanless |
| Max power Consumption | 7.6W |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Voltage | 100-240VAC |
| Frequency | 50-60Hz |
| Dimensions | 330 × 180 × 44 mm |
| Weight | 2.2kg |
- Bảo hành: 12 tháng.
